Fig. 9.
Download original image

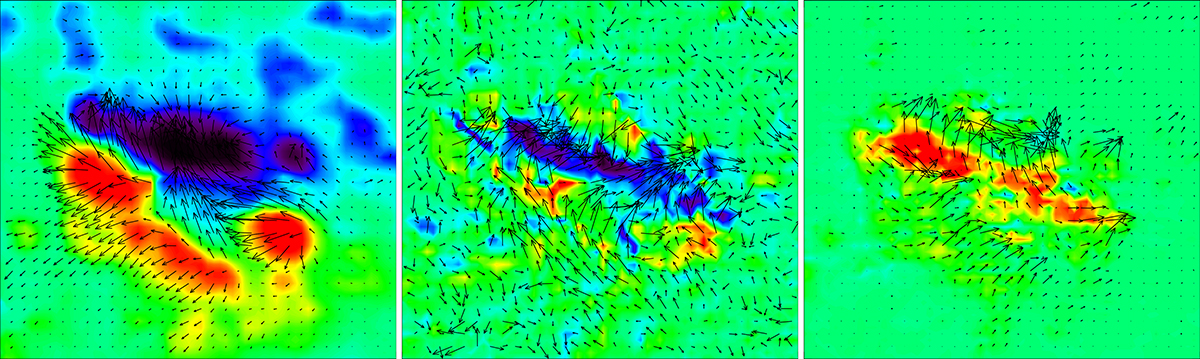

Active region NOAA 11865 observed with THEMIS on October 11, 2013 between 09:39 and 09:59 UT, in the photospheric lines Fe I 6301/6302. The ambiguity is resolved by our method. Left: Magnetic field vector, vertical component between −1450 and +1450, and horizontal component maximum arrow length 1320 G. Middle: Current density vector, vertical component between −96 and +96, and horizontal component maximum arrow length 655 mA/m2. Right: Lorentz force vector, vertical component between −83 and +83, and horizontal component maximum arrow length 43 mN/m2 (color figure on-line).
