Fig. 8.
Download original image

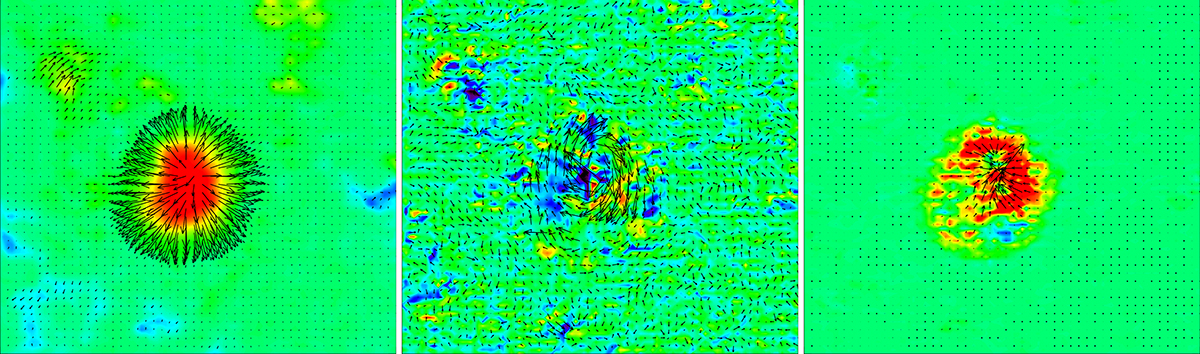

Active region NOAA 11857 observed with THEMIS on October 7, 2013 between 08:57 and 09:22 UT, in the photospheric lines Fe I 6301/6302. The ambiguity is resolved by our method. Left: Magnetic field vector, vertical component between −1790 and +1790, and horizontal component maximum arrow length 1070 G. Middle: Current density vector, vertical component between −68 and +68, and horizontal component maximum arrow length 746 mA/m2. Right: Lorentz force vector, vertical component between −56 and +56, and horizontal component maximum arrow length 133 mN/m2 (color figure online).
