Fig. 4.


Download original image

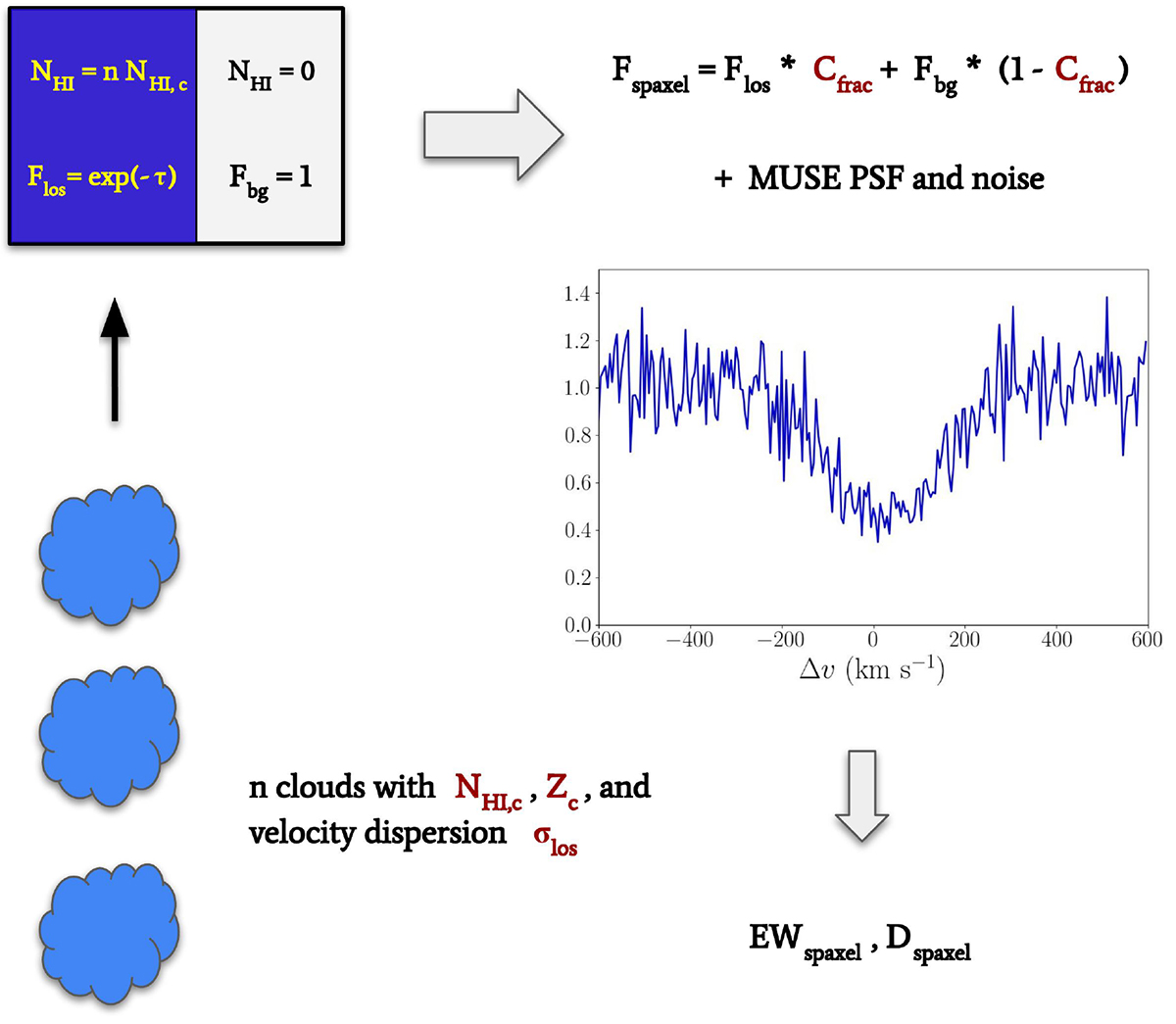

Schematics showing how we extract a pair of EW and D-index from a single spaxel, given a choice of the free parameters (highlighted in red) of our modeling. An ensemble of n clouds produces the absorption. The spaxel is only partially covered by gas, so that the flux is either equal to Flos = Fbgexp( − τ) if the clouds are intercepted or to Fbg = 1 if they are not. The total flux of the spaxel Fspaxel depends on the value of the covering fraction Cfrac. For more details, see Sect. 4.1.1.
