Fig. 8


Download original image

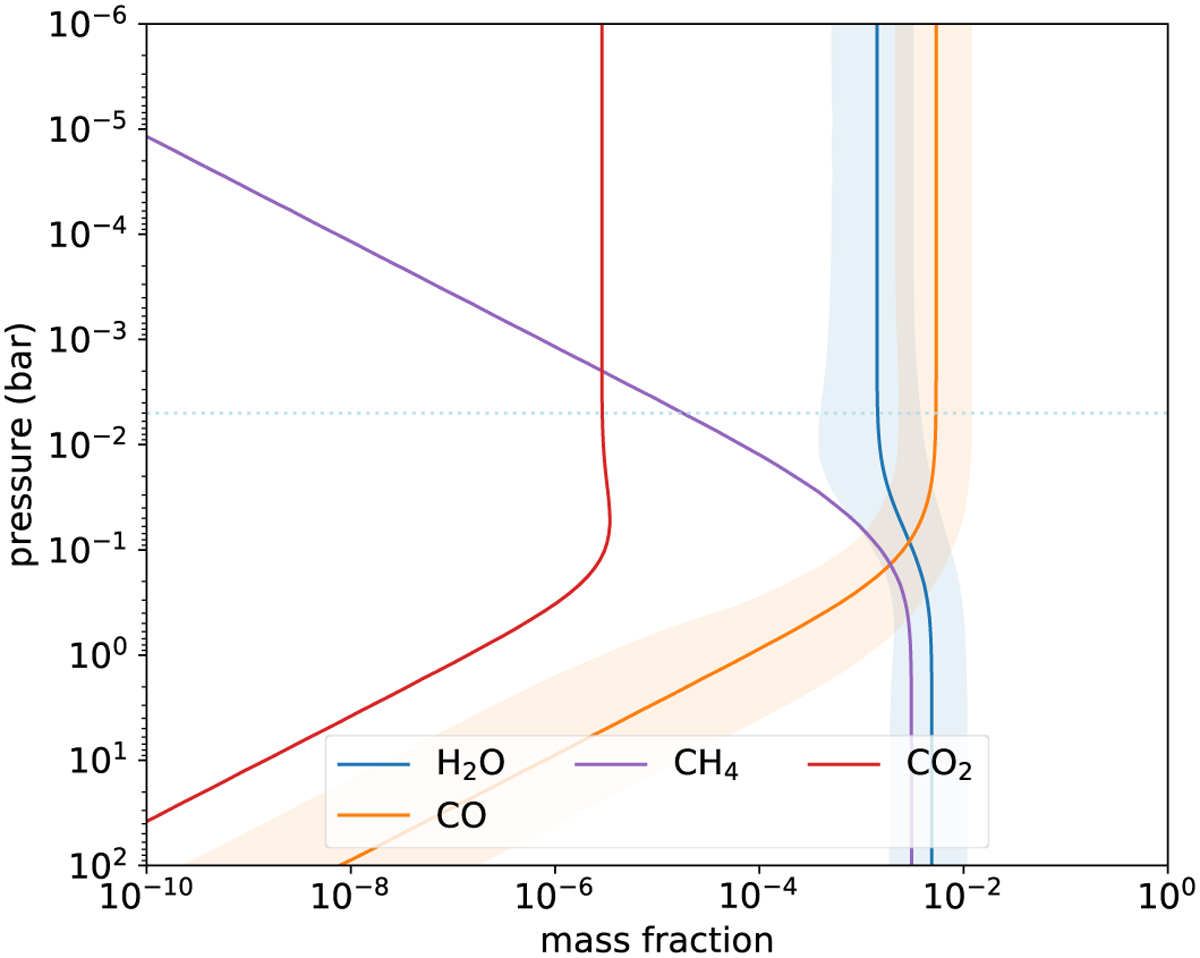

Mass fraction abundances for chemical equilibrium assumptions for the retrieved morning terminator model. For the calculation we used the retrieved C/O ratio, metallicity, isothermal temperature, and cloud top pressure of the redshifted (morning terminator) signal. We only show the uncertainties of the abundances of H2O and CO as they were the only species detected in the data. We indicate the height of the cloud top pressure as a horizontal dotted light blue line. Our data are only sensitive to signals and the corresponding abundances above the cloud top pressure (i.e. above that line).
