Fig. C.4
Download original image

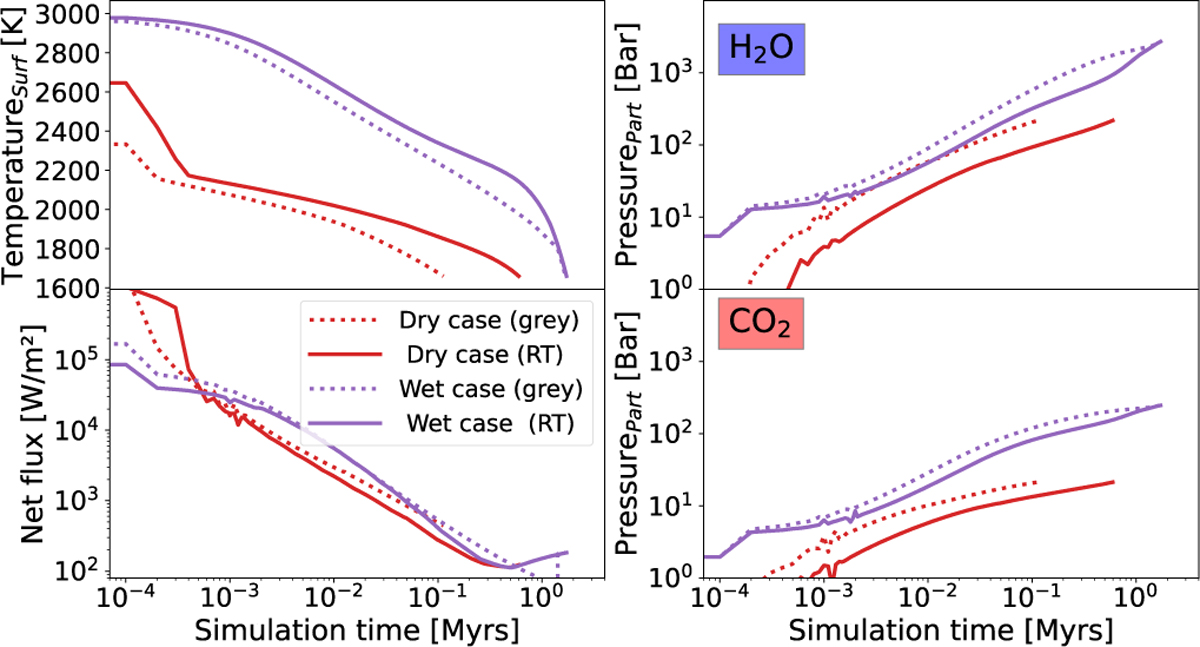

Earth magma ocean simulation setup for comparison with Elkins-Tanton (2008) with the traditional gray model but without greenhouse limit and the full RT grid model. Scenarios are as listed in Table C.1. The solid lines denote results of simulations with the gray atmosphere model. The dotted lines denote results of simulations with full RT. We note again that we show the net flux, which is equal ASR- OLR.
