Fig. 15.


Download original image

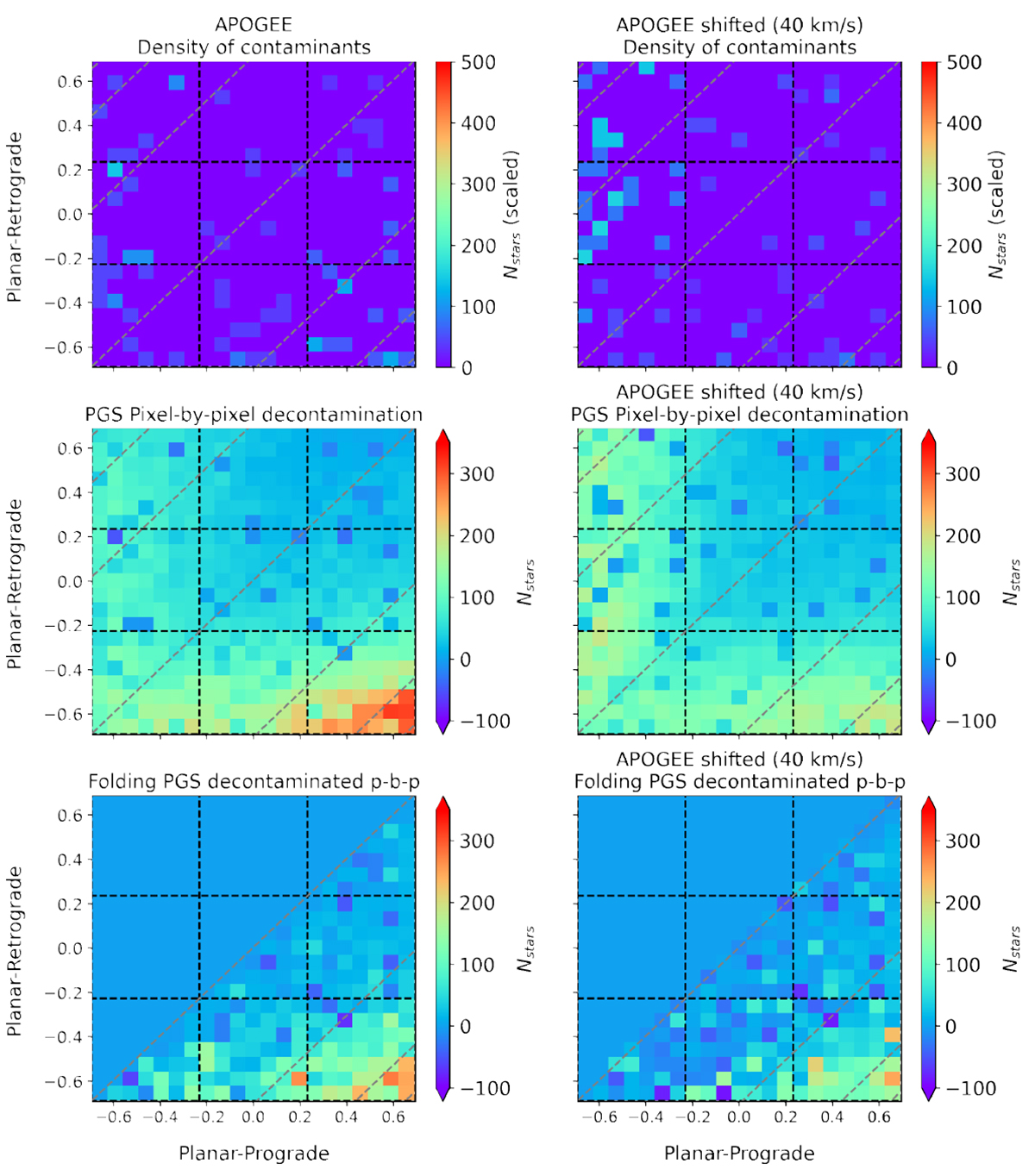

Rotated action space between –4.0 ≤ [Fe/H] < –1.7. The grey dashed lines correspond to different values of Lz/Jtot: [–0.95, –0.8, –0.5, 0, 0.5, 0.8, 0.95]. Left column: decontamination process and folding using APOGEE contamination. Top row: density of spectroscopic contaminants. Middle row: pixel-by-pixel decontamination. Bottom row: folding of the retrograde components over the prograde components, for PGS decontaminated pixel-by-pixel. In this space, the folding axis of symmetry is the grey dashed line at Lz/Jtot = 0. Right column: same as the left panels, but the three actions were computed shifting the observed Vϕ by 40 km.s−1.
