Fig. H.1

Download original image

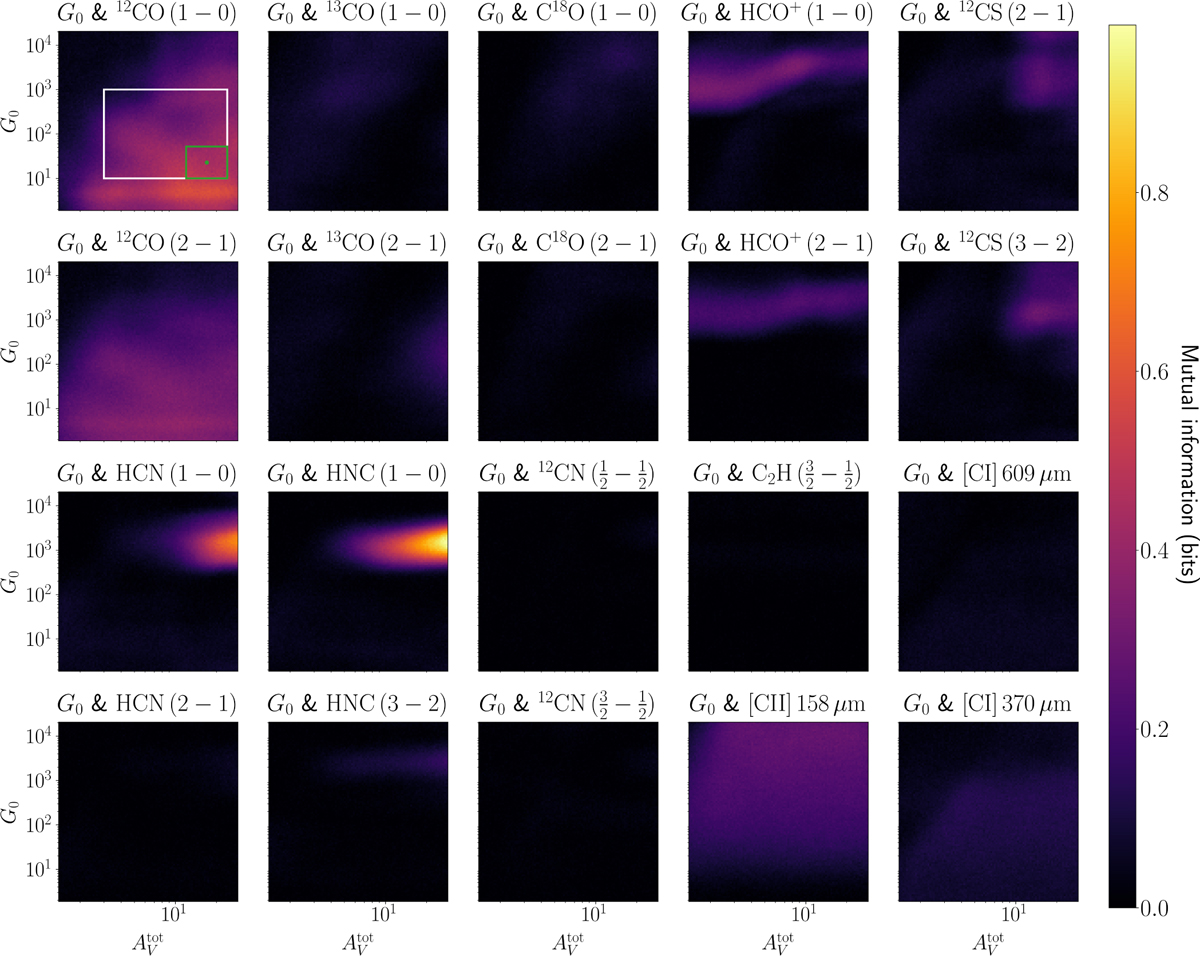

Maps of mutual information of individual lines with the UV radiative field in function of the actual visual extinction and intensity of the UV radiative field G0. The results are computed for the pressure following a loguniform distribution between 105 and 5 × 106 K cm−3. The red rectangle on the first panel shows the dimensions of the sliding window, while the white rectangle delimits the parameter space characterizing the Horsehead Nebula.
