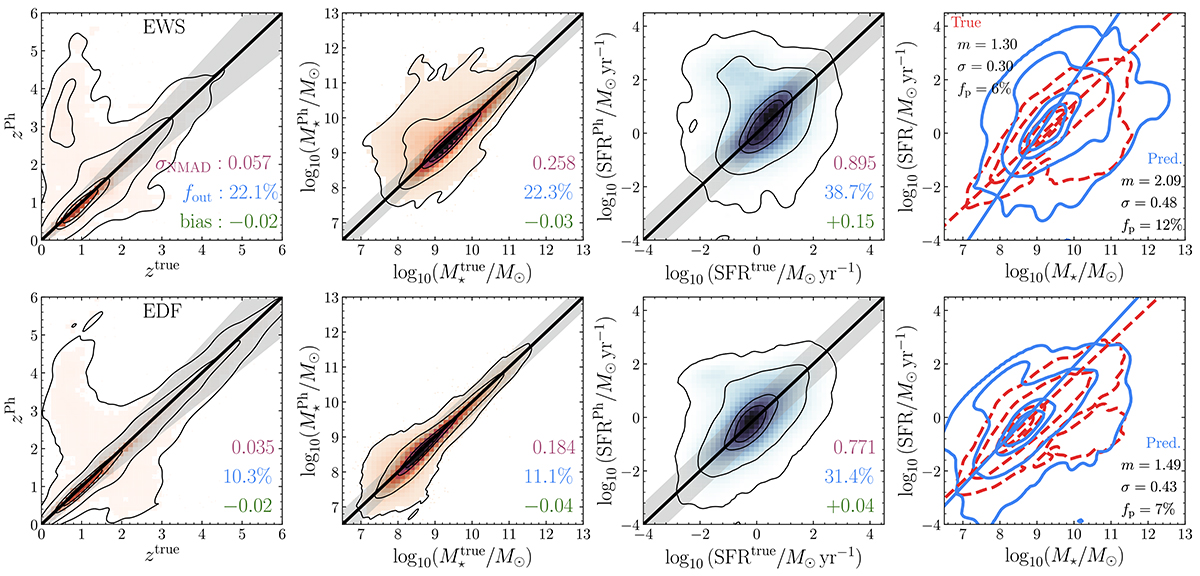

Fig. 3.

Download original image
Phosphoros results on two simulated Euclid catalogs, EWS (top panels) and EDF (bottom panels), with true values plotted against the Phosphoros recovered ones. The black line is the 1:1 relation; the shaded area is the region beyond which a prediction is an outlier. In every plot, the four contours are the area containing 98%, 86%, 39% (corresponding to the 3σ, 2σ and 1σ levels for a 2D histogram) and 20% of the sample. For SFMS the true distribution is reported in red (dashed), the predicted one in blue (solid). The lines are the ODR best-fit to the (passive-removed) distribution. The reported metrics are NMAD (purple), the outlier fraction fout (blue) and the bias (green) for the photometric redshifts and physical parameters, and the slope m, scatter σ and fraction of passive galaxies fp for the SFMS, all defined in Sect. 3.6.
