Fig. 6.

Download original image

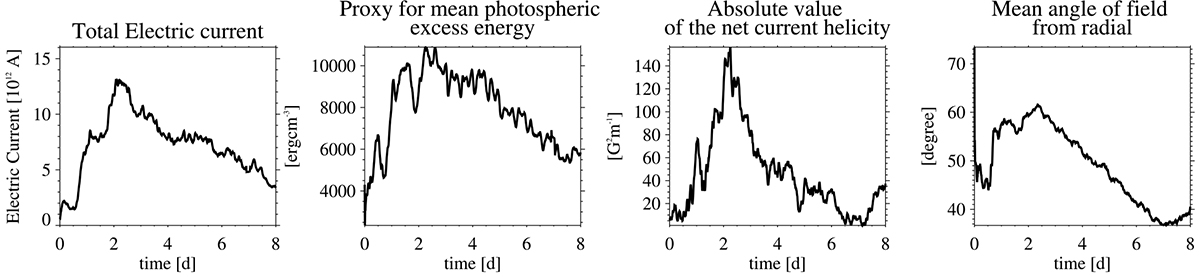

Temporal evolution of four selected SHARP parameters for the active region NOAA 11072. From left to right: Total vertical electric current (TOTUSJZ), the proxy for mean photospheric excess energy (MEANPOT), the absolute value of the net current helicity (ABSNJZH), and the mean angle of the magnetic field from the radial (MEANGAM).
