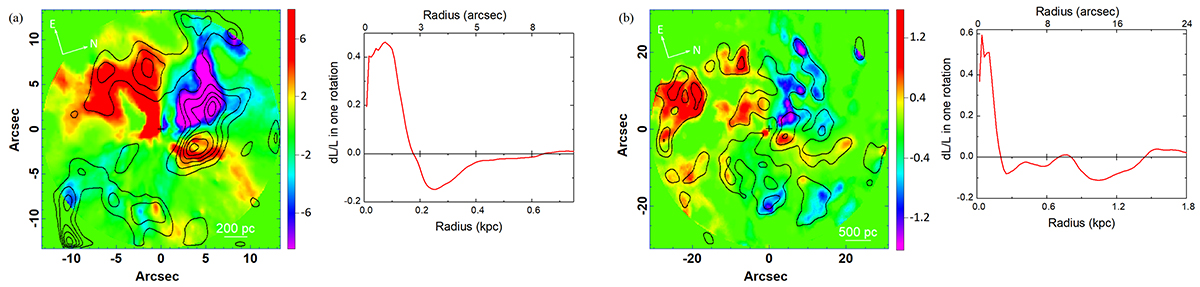

Fig. 20.


Download original image

NGC 4689 torque maps from the same set of data as in panel (a) Fig. 9a and (b) Fig. 9b. Same caption as Fig. 13. The contour levels were taken from the mean molecular gas map (a) 1, 1.4, 1.7, 2, 2.2, and 2.5 times 6.8 Jy/beam km/s, and (b) one to three times 4.9 Jy/beam km/s.
