Fig. 5
Download original image

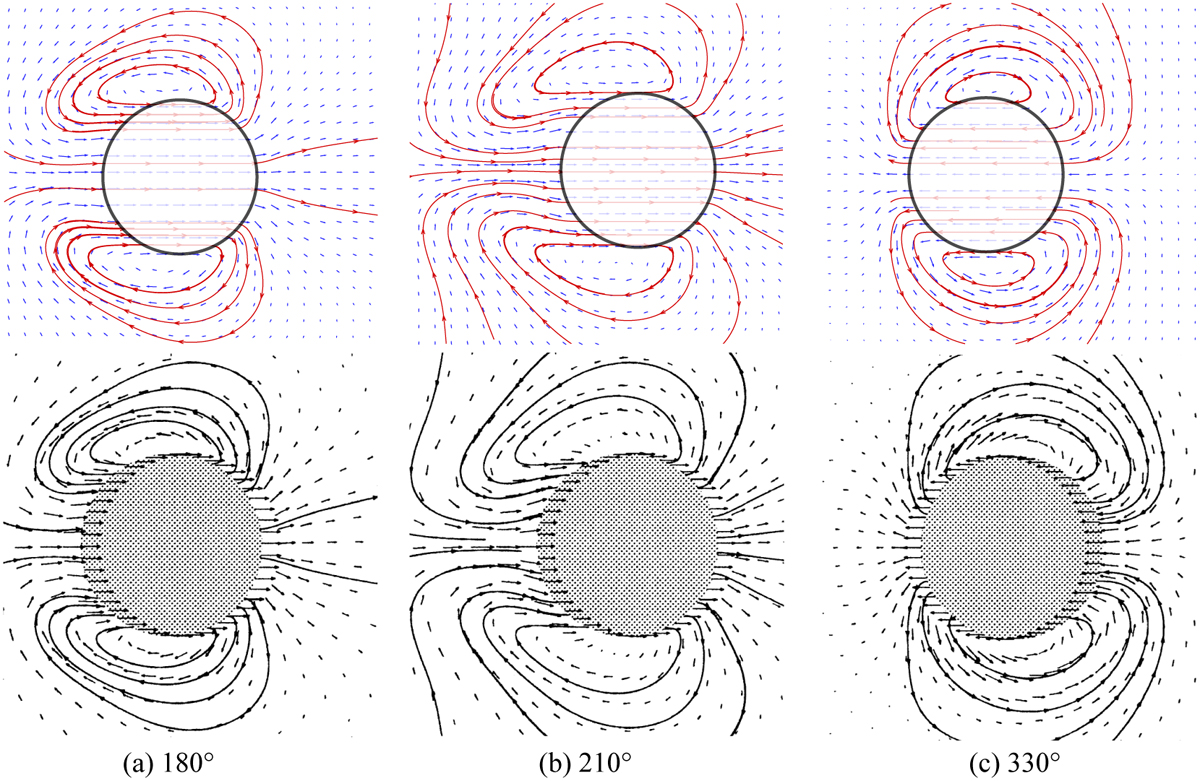

Comparison of velocity vectors and streamlines in the vicinity of the cylinder for Re = 100 and KC = 5 between this work (the first row) and Dütsch et al. (1998, the second row) at (a) 180°, (b) 210°, and (c) 330°. The blue arrows are the velocity vectors, the red curves are the streamlines, and the black circle is the cylinder.
