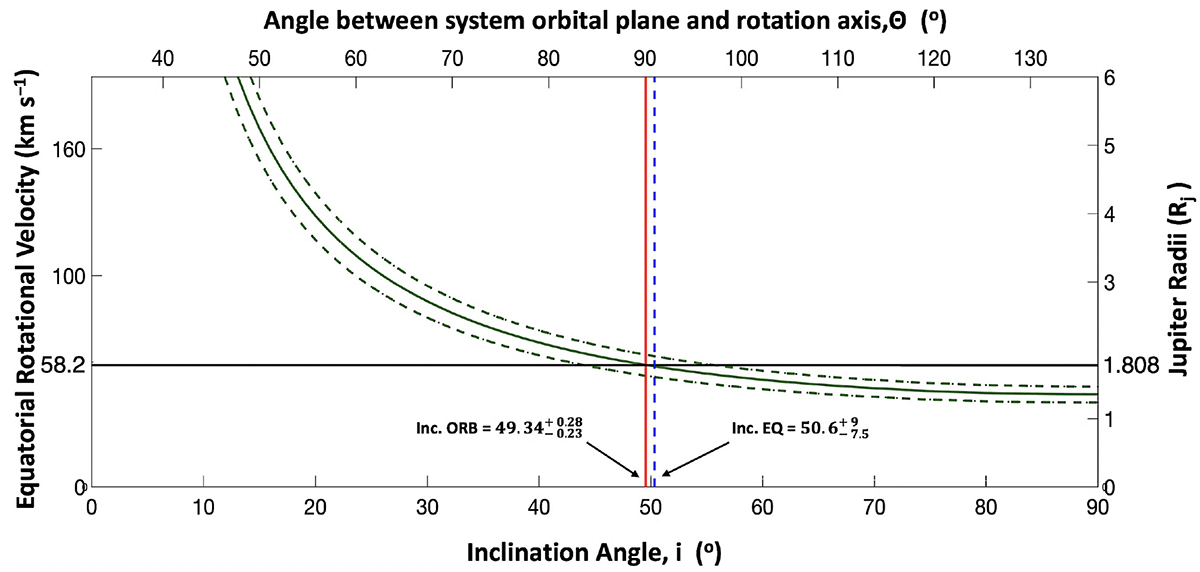

Fig. 17.

Download original image
Equatorial rotational velocity vs. inclination angle of the orbital plane for 2M J1314+13B. The green solid curve plots the v sin i of 2M J1314+13B (45 ± 5 km s−1) (McLean et al. 2011). The black horizontal lines show the inferred equatorial velocity of 58.2 ± 0.2 km s−1 for 2M J1314+13B. The dashed green and black lines correspond to the error in this measurement. We find that our photometric period of rotation, combined with the latest estimated radius of 1.808 ± 0.018 RJ (Dupuy et al. 2016), results in an equatorial inclination angle of 50.6 degrees, consistent with an inclination of the stellar rotation axes with with respect to the plane of the sky of 49.34
degrees (Dupuy et al. 2016).
