Fig. 4.

Download original image

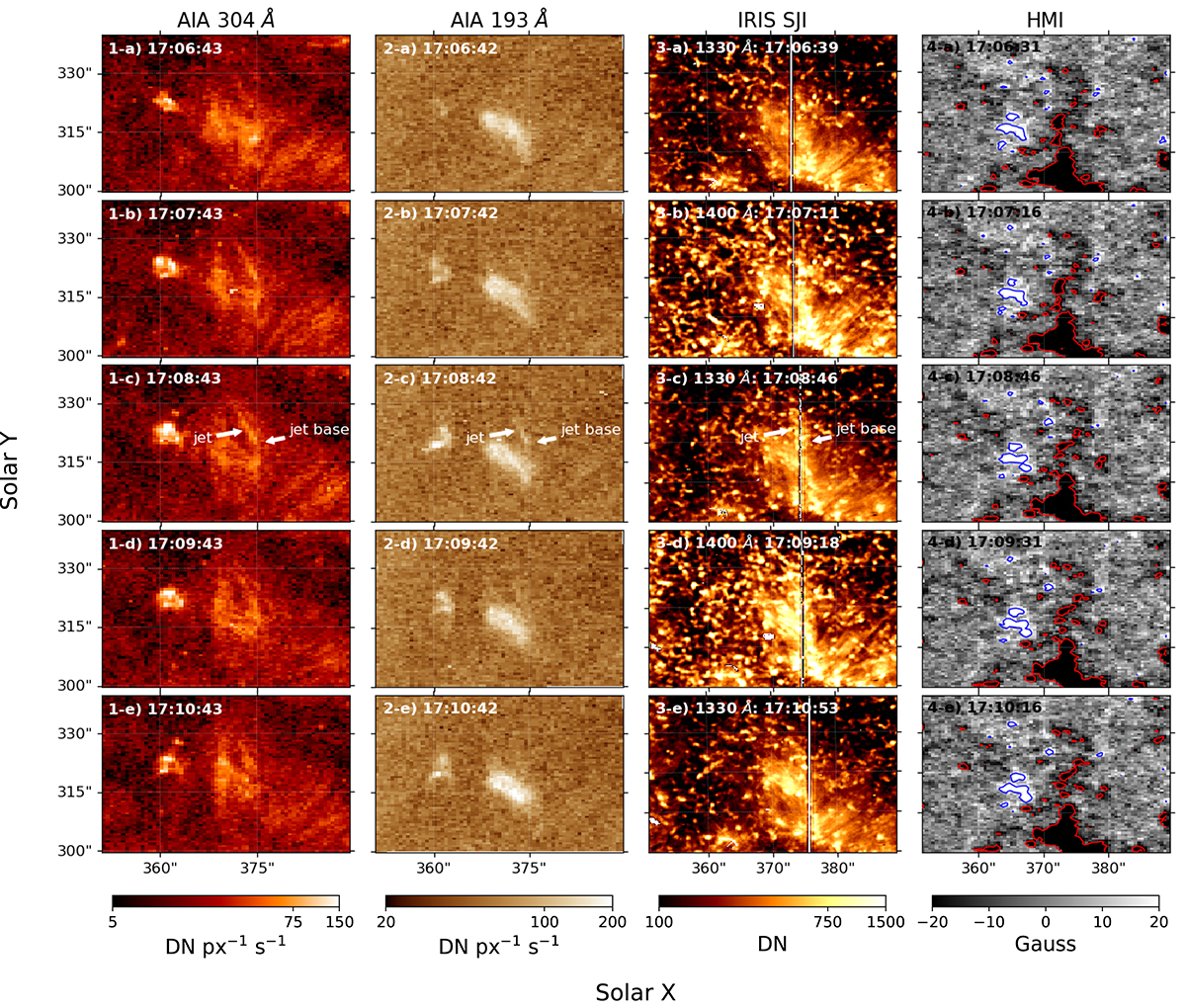

Temporal evolution of Jet 2. Columns 1 to 4 show AIA 304 Å and 193 Å, SJ 1330 Å and 1400 Å, and HMI magnetogram images, respectively. Time evolves from 17:06 UT (first row) to 17:10 UT (last row). The white arrow in panels 1-c, 2-c, and 3-c shows the jet eruption. The red and blue contours indicate regions with strengths of –20 G and 20 G, respectively.
