Fig. 9
Download original image

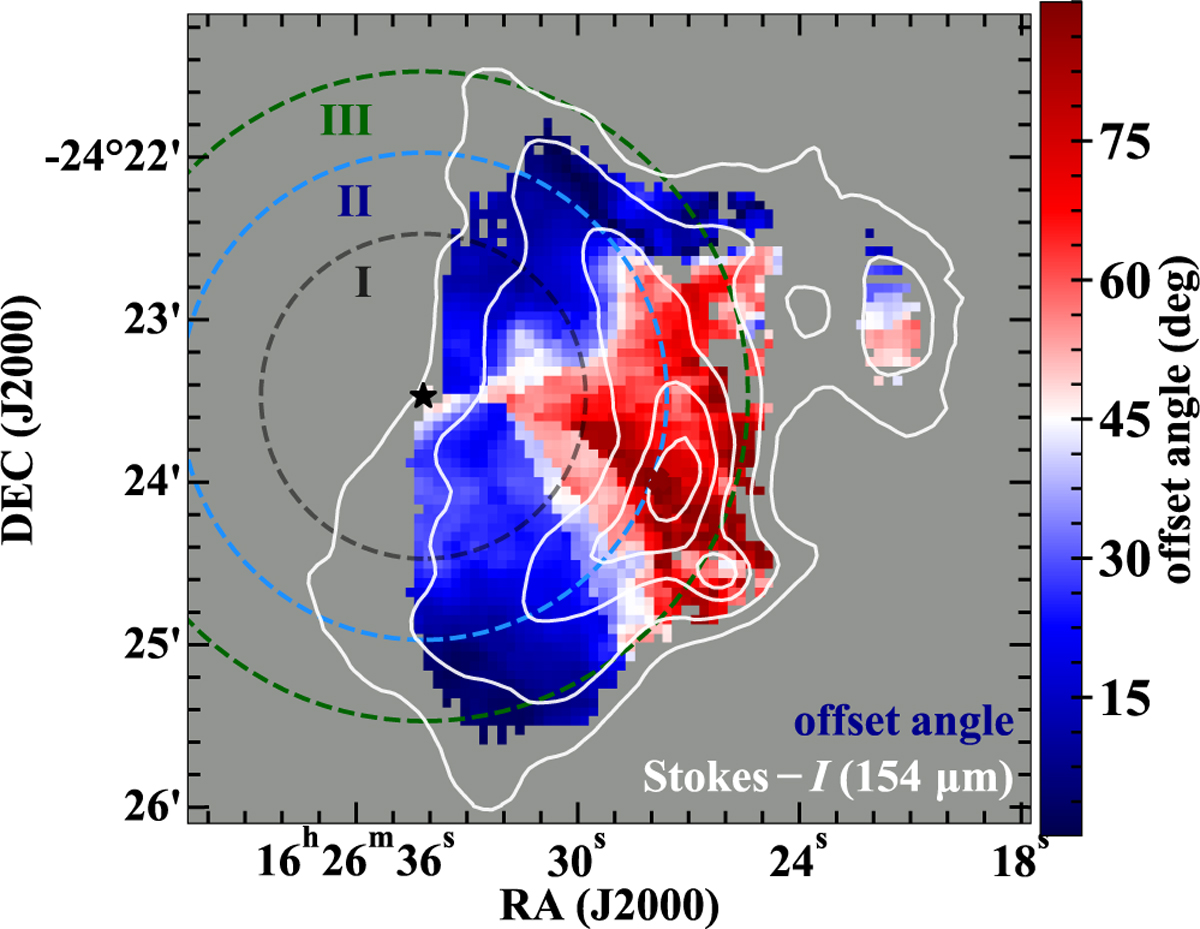

Map of the offset angle between B-field orientations and main cloud structure in ρ Oph-A. White contours show the continuum emission at 154 μm with similar levels as in Fig. 4. The dashed circles centered at the position of the Oph-S1 star have a radius of 60″ (black), 90″ (blue), and 120″ (green), corresponding to the levels of AV of ~6, 30, and 200 mag. The star symbol marks the position of the Oph-S1 star.
