Fig. 7


Download original image

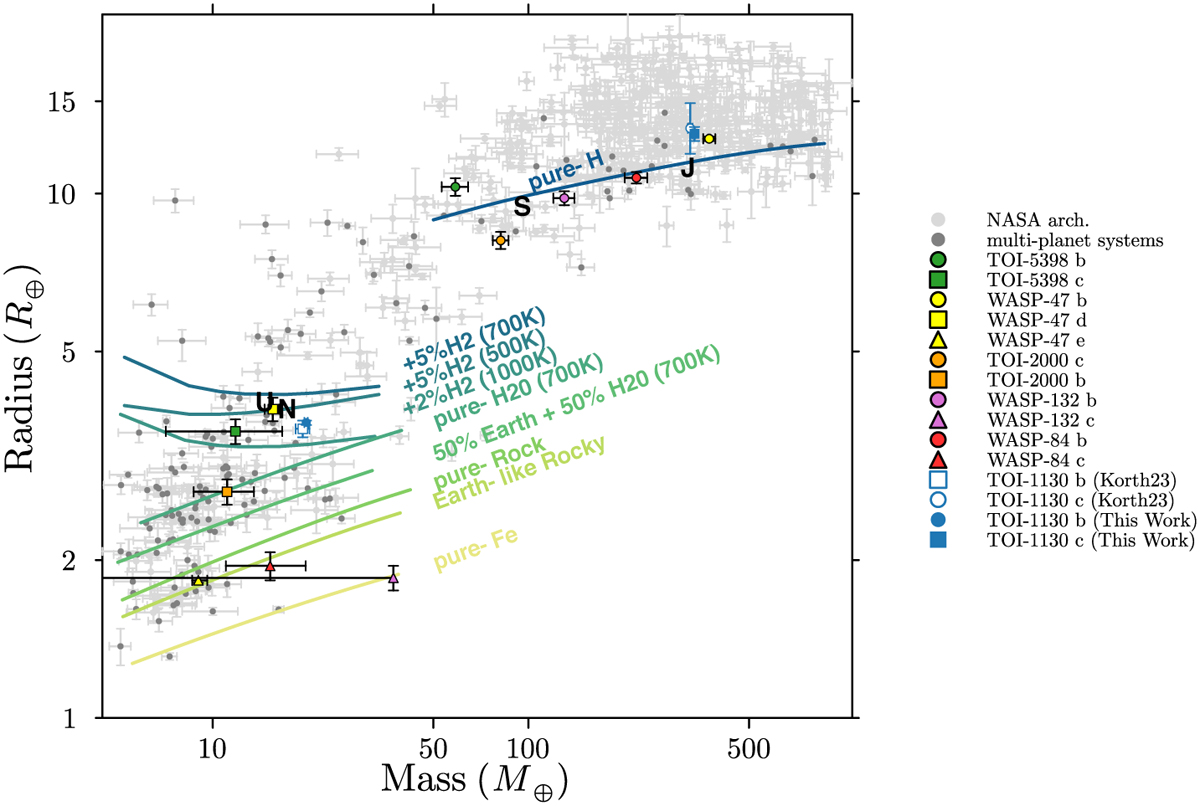

Mass-radius relation plot with data from the NASA Exoplanet archive for exoplanets with a mass and radius precision lower than 20%. Models (plotted as colour-coded lines) from Zeng et al. (2019) and https://lweb.cfa.harvard.edu/~lzeng/planetmodels.html#mrrelation. We plotted TOI-1130 b as square, white-fill blue-stroke from Korth et al. (2023) and full-blue from this work; TOI-1130 c as circle, same colour-code of TOI-1130 b. Over-plotted as dark-grey circles the multi-planet systems and a sample of TOI-1130-like systems with different colours (based on host-name and with black outer stroke) and markers (based on planet type, circle for giants, triangle for Rp ≤ 2 R, and square in between): TOI-5398 (Mantovan et al. 2024), WASP-47 (Nascimbeni et al. 2023), TOI-2000 (Sha et al. 2023), WASP-132 (Hellier et al. 2017; Hord et al. 2022), and WASP-84 (Maciejewski et al. 2023). Over-plotted, also, Neptune (N), Uranus (U), Saturn (S), and Jupiter (J).
