Fig. A.2


Download original image

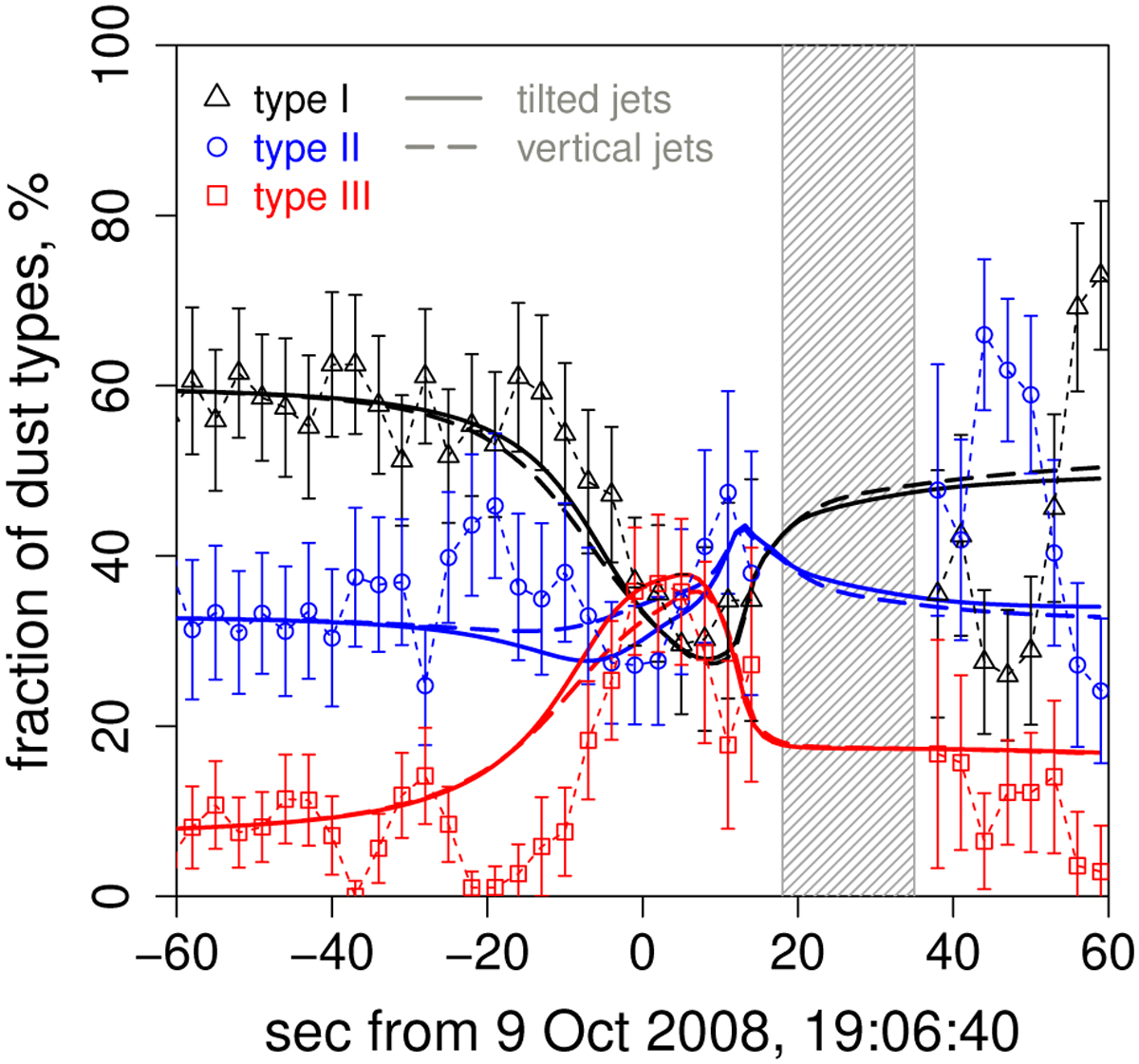

E5 compositional profile measured (symbols) and modeled (lines) using the jet sources from Porco et al. (2014). The solid line corresponds to a model that uses the original tilts for the jets as reported in Porco et al. (2014). The dashed line corresponds to a model that neglects these tilts and uses a vertical jet axis instead.
