Fig. 16.


Download original image

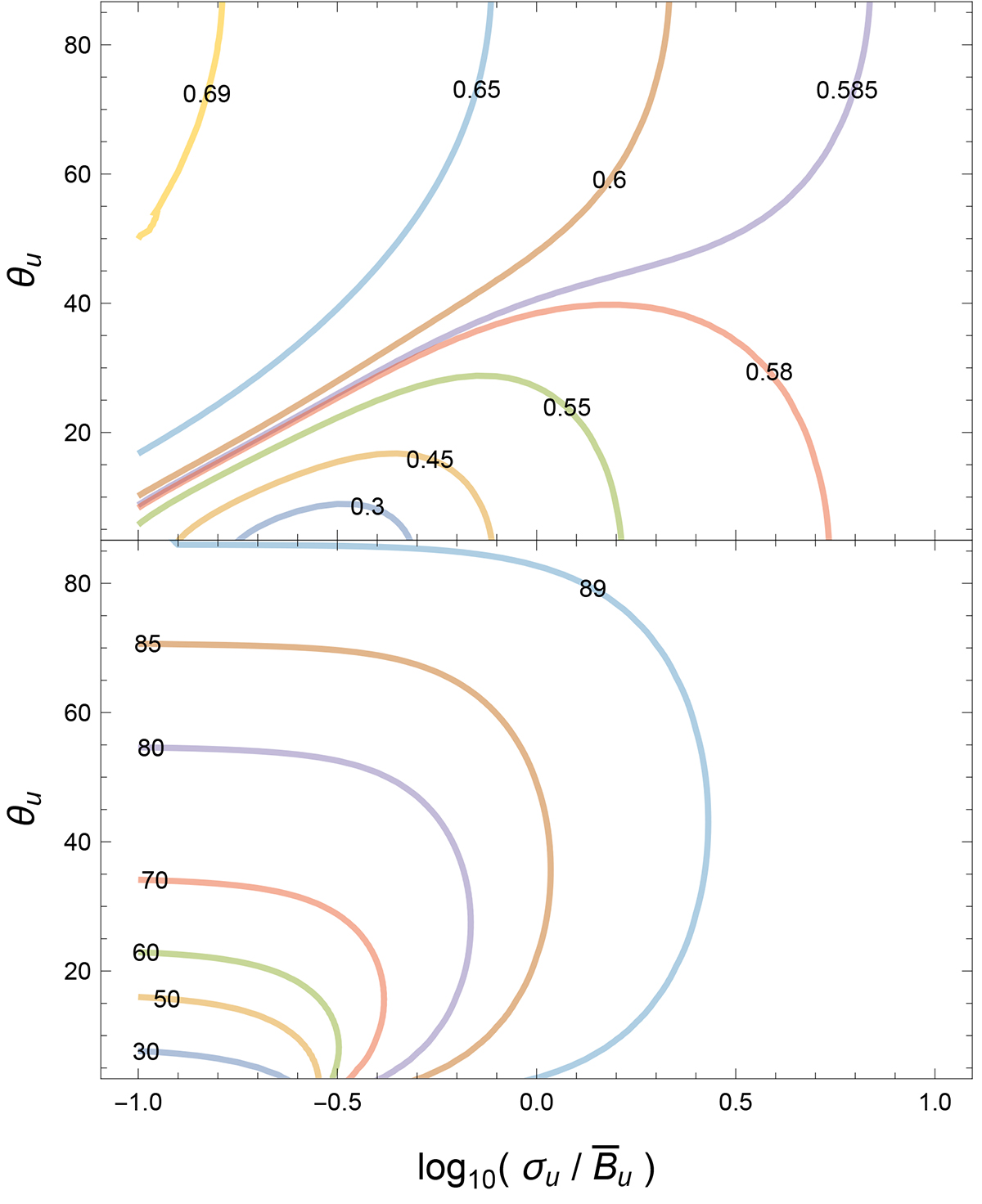

Map of Π (upper panel) and of the (magnetic) polarization direction θs (in degrees, from the direction of the shock velocity), for a wide choice of upstream MF conditions. Here the particle distribution has a power-law index s = 2, corresponding to a spectral index α = −0.5.
