Fig. D.1

Download original image

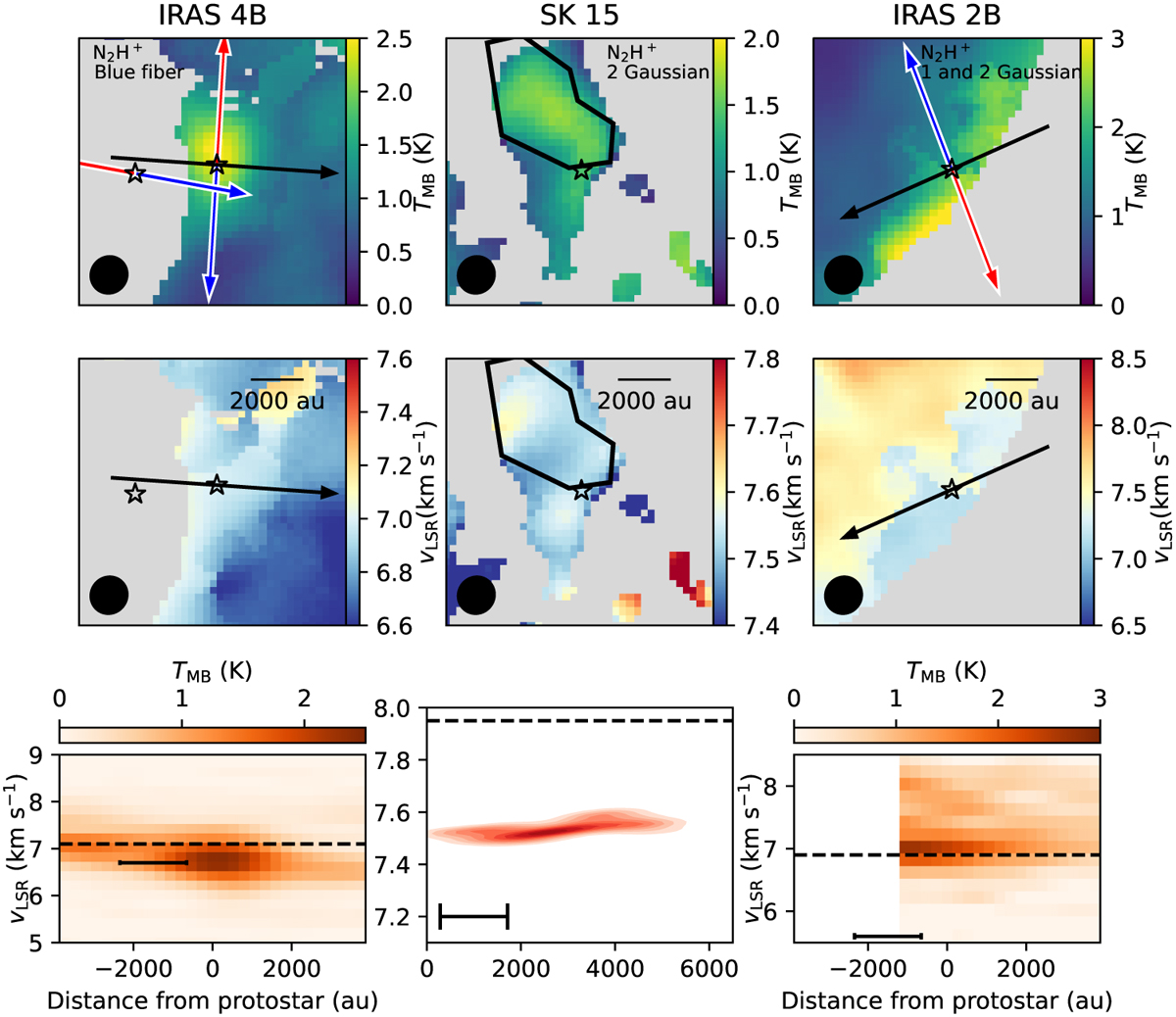

Zoom-in plots of N2H+ emission for IRAS 4B (left), SK 15 (center), and IRAS 2B (right), with the same panels as shown in the right panel of Fig. 7 , except for SK 15. The Gaussian component for each protostar is labeled accordingly. The black ellipse in the bottom left corner represents the beam. Top: Amplitude TMB of the Gaussian component. The blue and red arrows indicate the direction of the blue- and redshifted outflow lobes, respectively, for known outflows in the plotted area. Middle: Central velocity υLSR of the Gaussian component we selected. The scale bar represents a length of 2000 au. Bottom: For IRAS 4B and IRAs 2B, the position-velocity diagram along the path indicated in the top panel. For SK 15, KDE of the υLSR within the selected region. The red density histogram represents the KDE of the velocities within the black polygon. The dashed lines mark the υLSR of each protostar. The black scale bar represents a length equivalent to one beam.
