Fig. 8.

Download original image

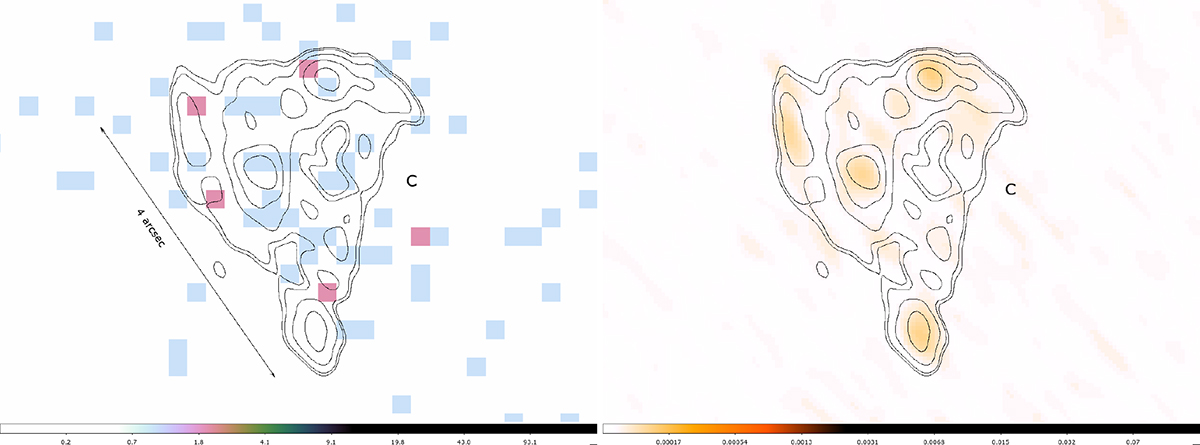

Images of knot C. Left: ACIS-S 0.5–7 keV mosaic image of knot C binned to 0.246″ pixels and 6 GHz contours starting at 0.075 mJy beam−1 with a scale. The color map shows the number of counts per image pixel. The arrow marks a 4″ scale size. Right: C-band polarization map with 6 GHz radio intensity contours starting at 0.075 mJy beam−1 (3σ) with a
scale. Compact polarization regions are aligned with the enhanced radio intensity.
