Fig. 6

Download original image

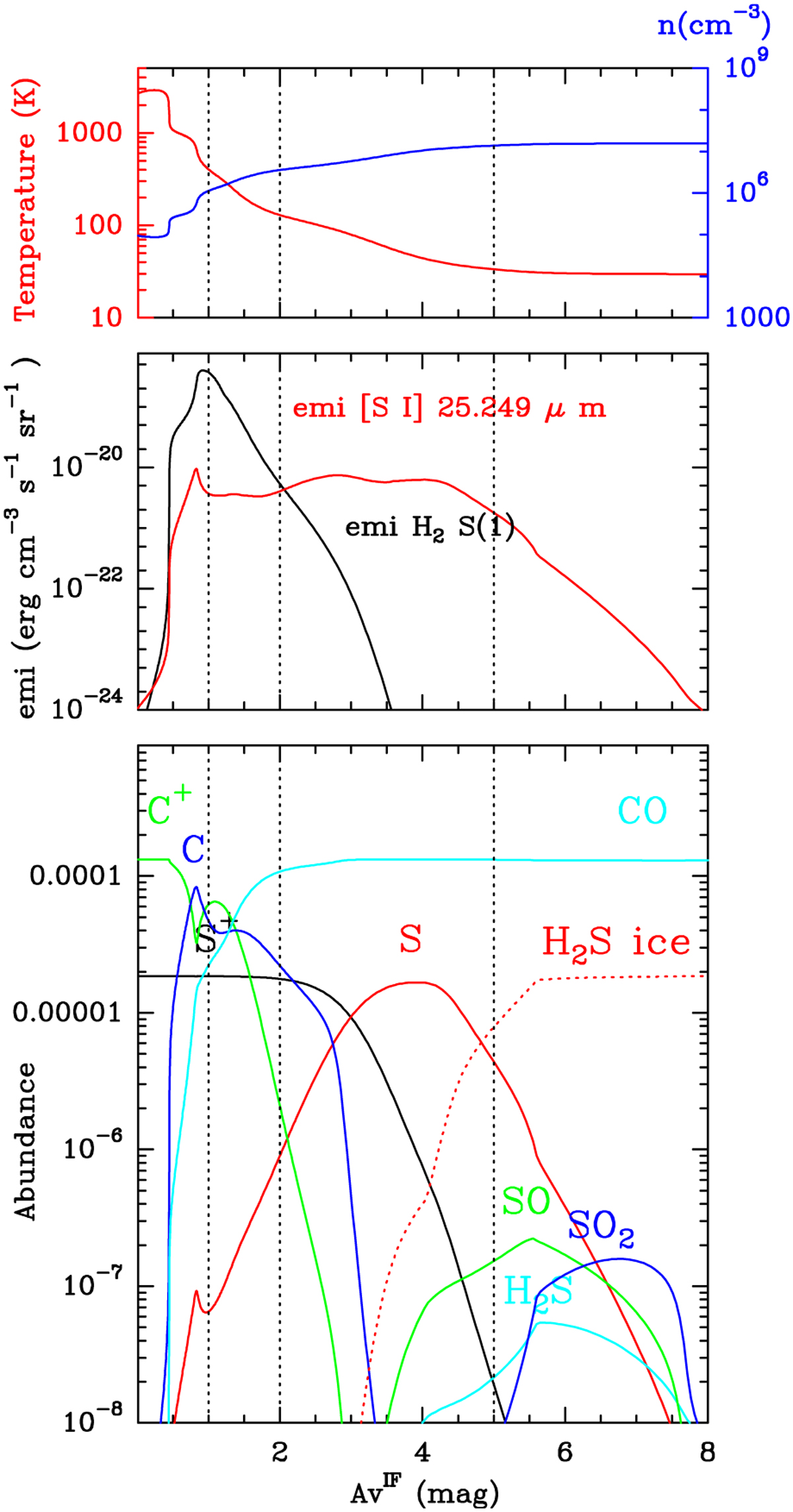

Predictions of the Meudon PDR code for the reference model. From top to bottom: physical conditions, volume emissivities of the H2 S(1) and [S I] 25.249 µm lines, and chemical abundances relative to hydrogen nuclei as a function of the visual extinction from the HII region (). The volume emissivity is defined as emi = n × fu × Eu × Aij(4 × π), where n is the gas density, ƒu is the fraction of particles in the upper level, and Eu and Aij are the upper level energy and the Einstein spontaneous emission coefficient. The transition of S+/S takes place at a visual extinction,
mag, where the gas temperature drops below 100 K and densities are ~107 cm−3. The local volume emissivity of the [S I] 25.249 µm line remains high deeper into the molecular cloud, until
mag. We indicate
, and 5 mag with dashed vertical lines.
