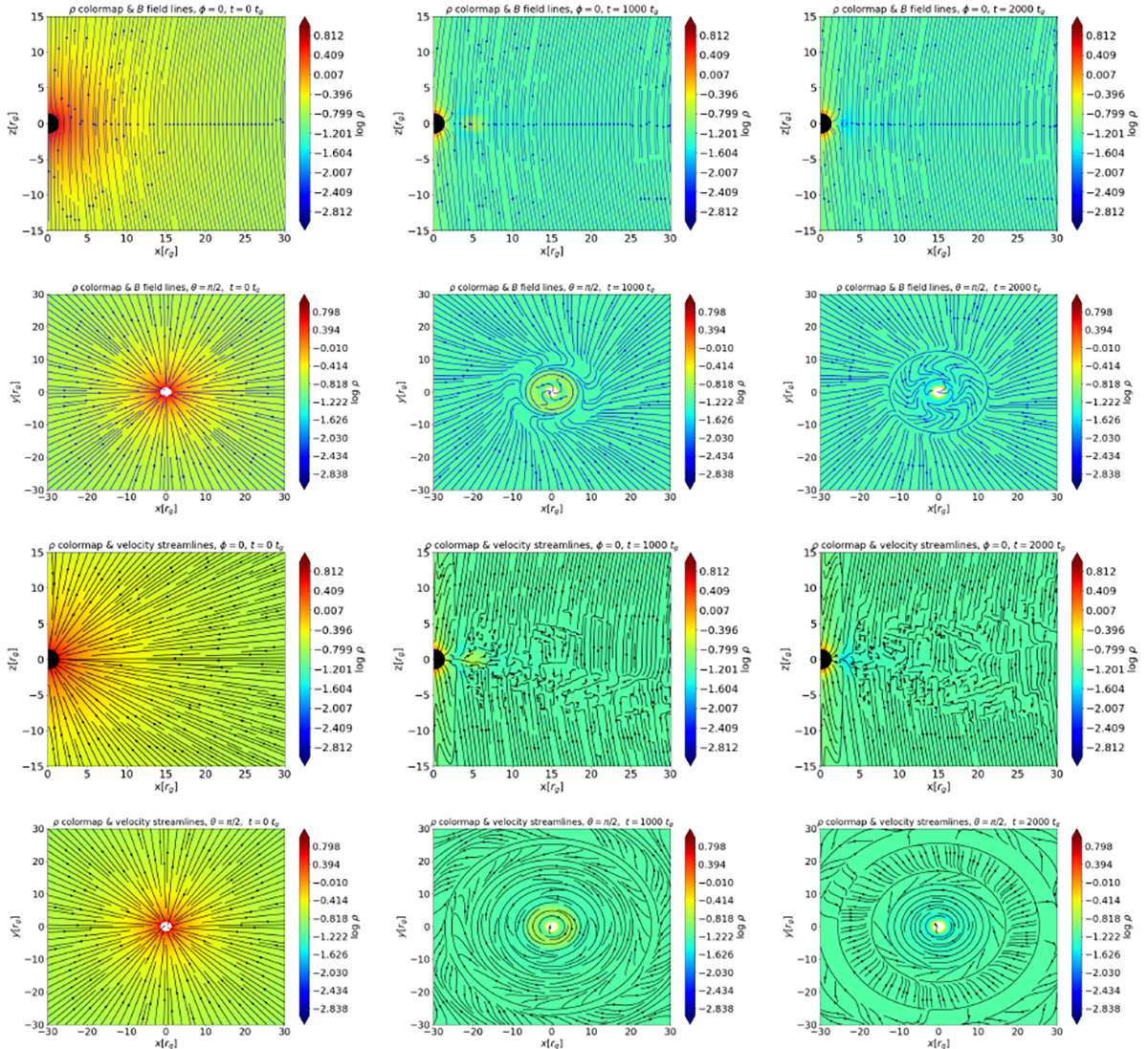

Time evolution of the aligned magnetic field 3D model: selection of exemplary plots showing the density, the magnetic field (top two panels), and velocity (bottom two panels) evolution for the b01.a90.3D model. The equatorial plane (x, y) (view along the rotation axis) and the poloidal section (x, z) (view perpendicular to the rotation axis) are shown. The left panels show the initial configuration with the magnetic field turned on. The middle and right panels show the later evolved states. The first row depicts poloidal slices at ϕ = 0°, and the second row shows equatorial slices (θ = π/2). The third and fourth rows show similar slices for the velocities.
