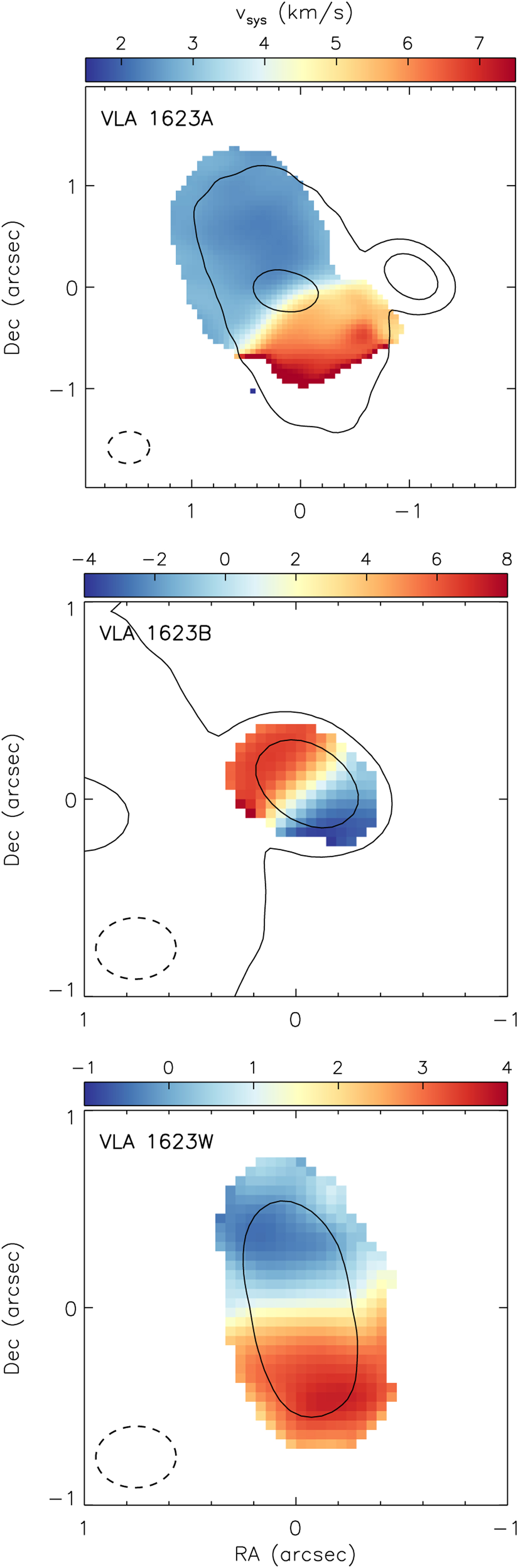

Fig. 5

Download original image
C17O Moment 1 maps for all three disks using restricted velocity channels (see the main text for details). Black contours show the Stokes I continuum at 7 and 49 mJy beam−1. The beam for each map is in the lower-left corner. The Moment 1 maps are masked using thresholds in Moment 0 and dust continuum to avoid noisy pixels and cleanly show the gradients in the disks.
