Fig. 5.


Download original image

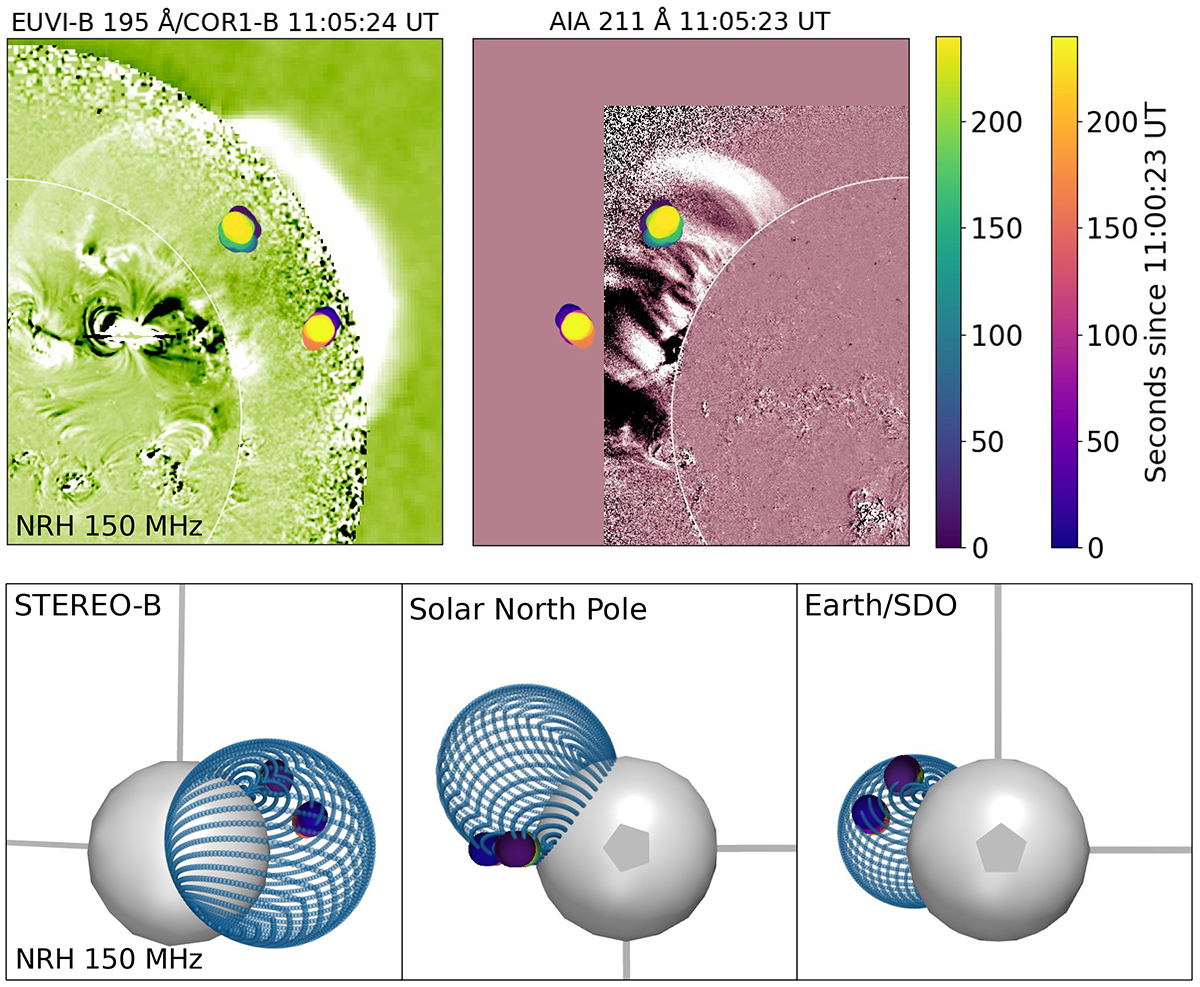

Centroids of the radio emission at 150 MHz. The top panel shows the centroids of the radio emission from the perspective of STEREO-B (left) and Earth (right). The centroids are plotted over running difference images from STEREO/SECCHI/EUVI-B at 195 Å, STEREO/SECCHI/COR1-B, and SDO/AIA at 211 Å. The bottom panel shows the centroids together with the 3D reconstruction of the shock from three perspectives: STEREO-B (left), solar north pole (middle), and Earth (right).
