Fig. 7

Download original image

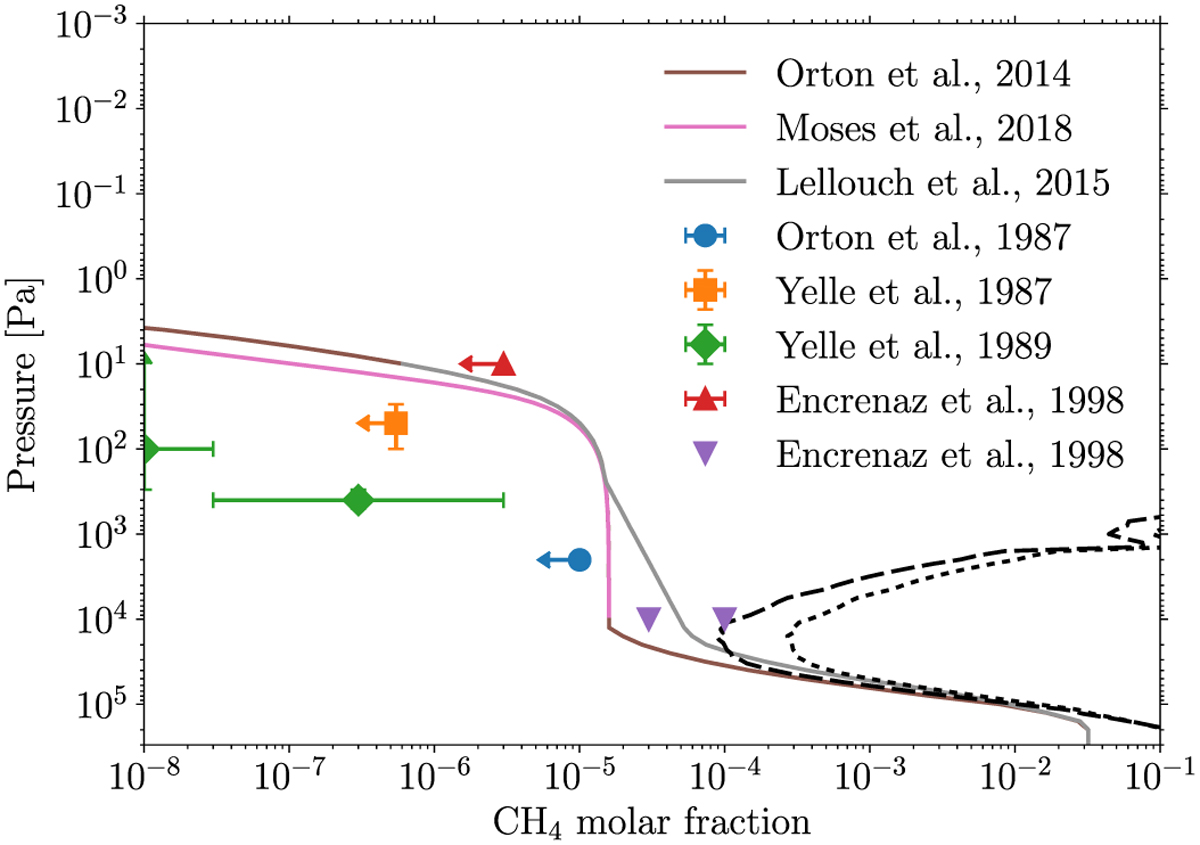

Methane volume mixing ratio in the atmosphere of Uranus estimated by different observations and models. The dotted line represents the liquid saturated CH4 vmr calculated from Lindal et al. (1987) temperature profile and the dashed line is the ice saturated CH4 vmr. The nominal CH4 vmr profile used in our model is Lellouch et al. (2015) below the 100 Pa level and Moses et al. (2018) above the 100 Pa level.
