Fig. 11.


Download original image

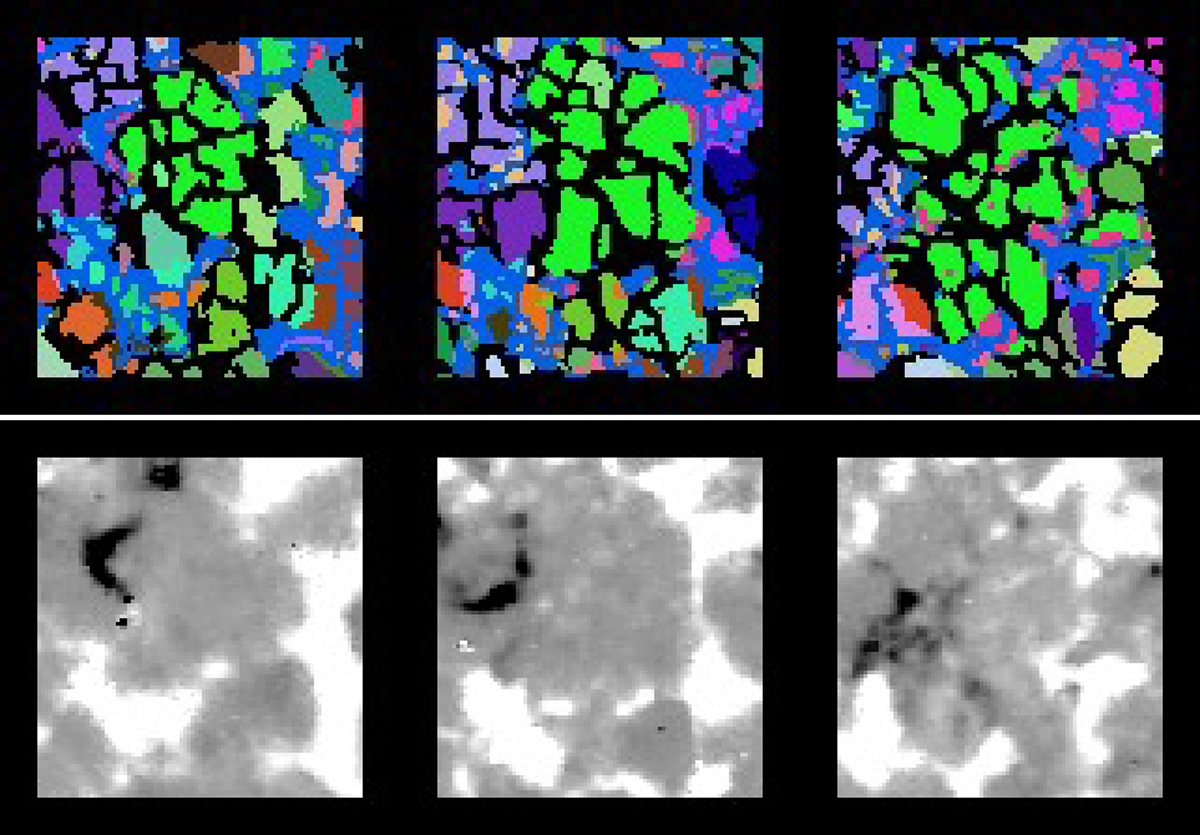

Zoom of TFG 2 (green color) evolution at different times (top) following the granules with the horizontal flows after t = 1427 s (at 16:58:59 UT), after t = 3214 s (at 17:28:48 UT), and after t = 5001 s (at 17:58:33 UT) superimposed NIRIS magnetic field (blue). Bottom: evolution of the magnetic field network (now in white) showing the network approaching the bottom part of the panel due to “the expansion and magnification” of TFG2 towards the bottom. The magnetic field has been reversed for a better view of the MMFs. Field of view 8.8″ × 9.2″.
