Fig. 5.


Download original image

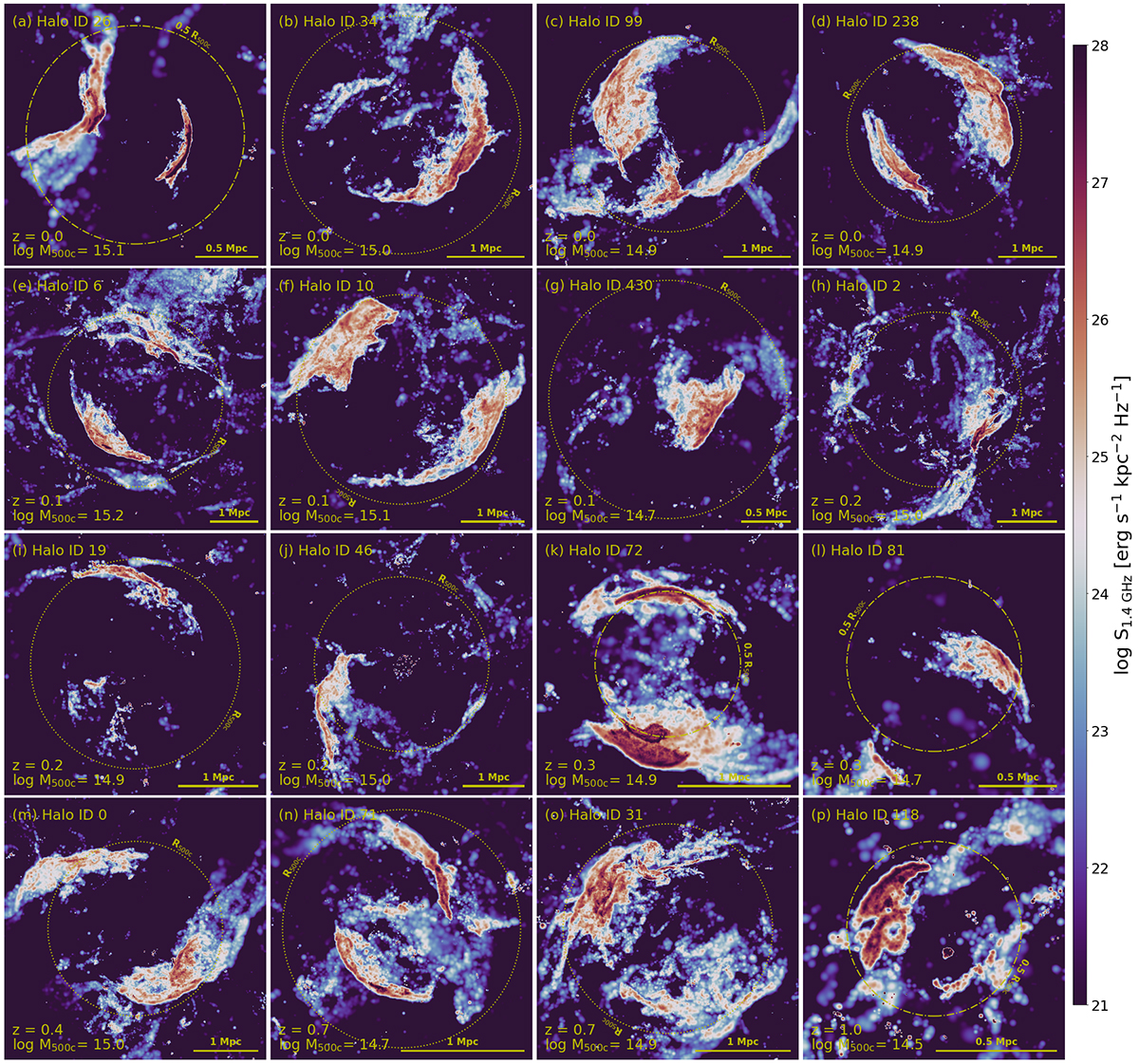

Radio surface brightness maps of 16 radio relic systems in the TNG-Cluster simulation that showcase a diversity of features and configurations. The color scale of the radio surface brightness maps ranges from 1021 to 1028 erg s−1 Hz−1 kpc−2. The dotted and dash-dotted yellow circles mark R500c and 0.5 R500c, respectively. TNG-Cluster radio relics present a diverse morphology, including double, single, and linear or inverted radio relics.
