Fig. 5

Download original image

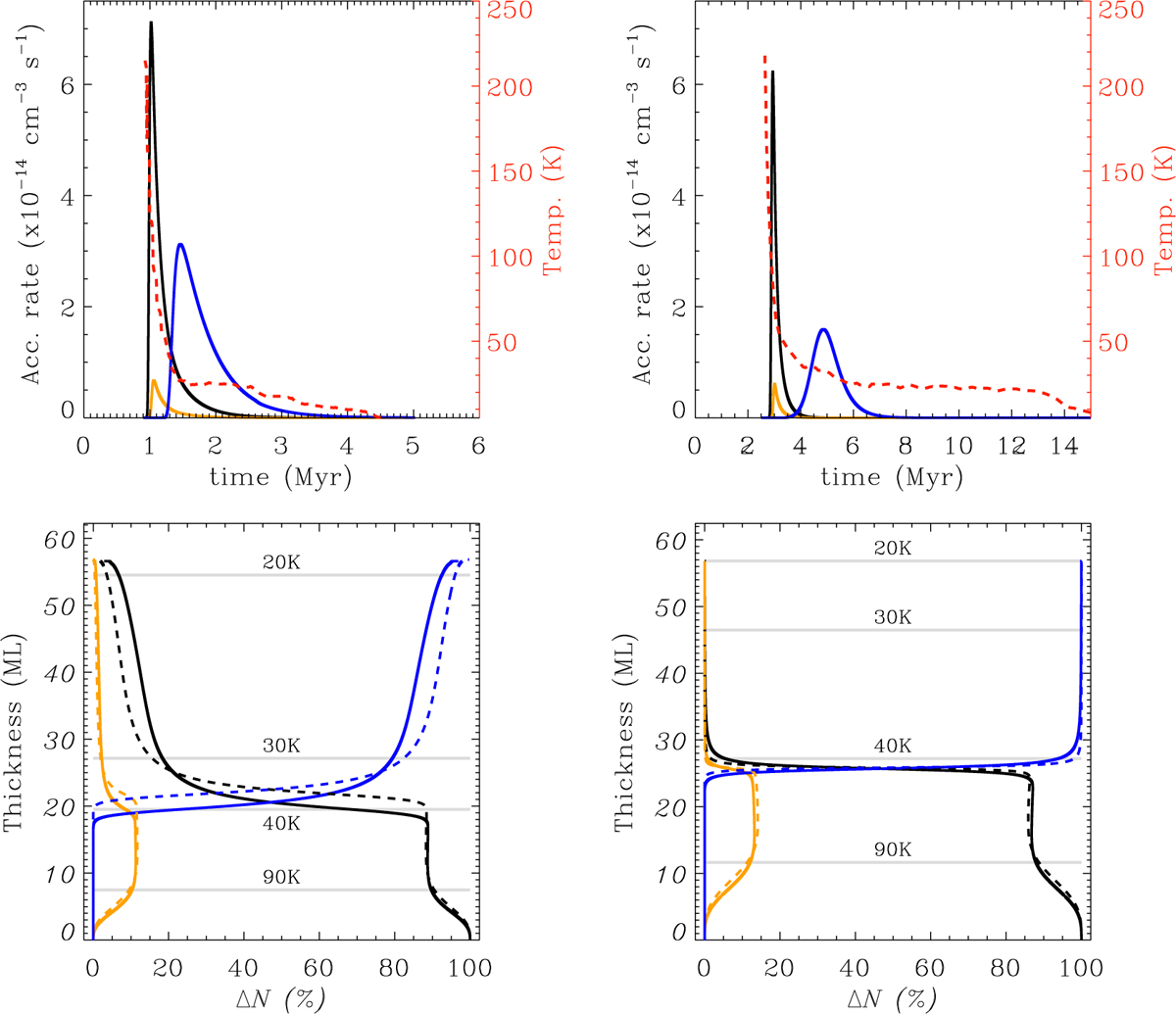

Morphological structure of an interstellar ice. Top panels: accretion rate during the molecular cloud collapse. Bottom panels: fractional ice composition AN as a function of the ice thickness (in ML). Left-hand side column: fast flow. Right-hand side column: slow flow. Black indicates H2O, orange represents NH3, and blue symbolizes CO. Red lines are for the cloud thermal profile. Dashed lines in the bottom panels represent the case in which gas and dust temperatures differ (Tg – Td = 50 K).
