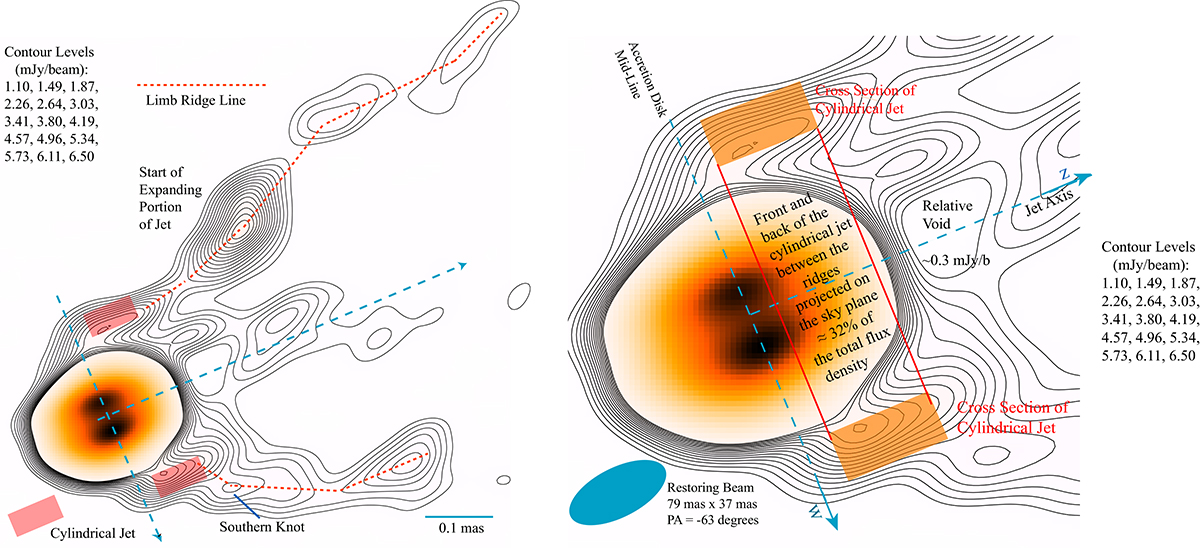

Relating the cylindrical source to the cylindrical and outer jets. The left panel is a wide angle view from (Punsly 2023). This shows the cylindrical source as an extension of the ridges of the outer jet. The nucleus is saturated in this format, which accentuates the jet. The sky plane is the w − z plane and the midline of the putative accretion disk is the w-axis. The right panel is a close-up of the cylindrical source location. The location of the cylindrical source projected onto the sky plane is denoted by the red rectangle.
