Fig. 13.


Download original image

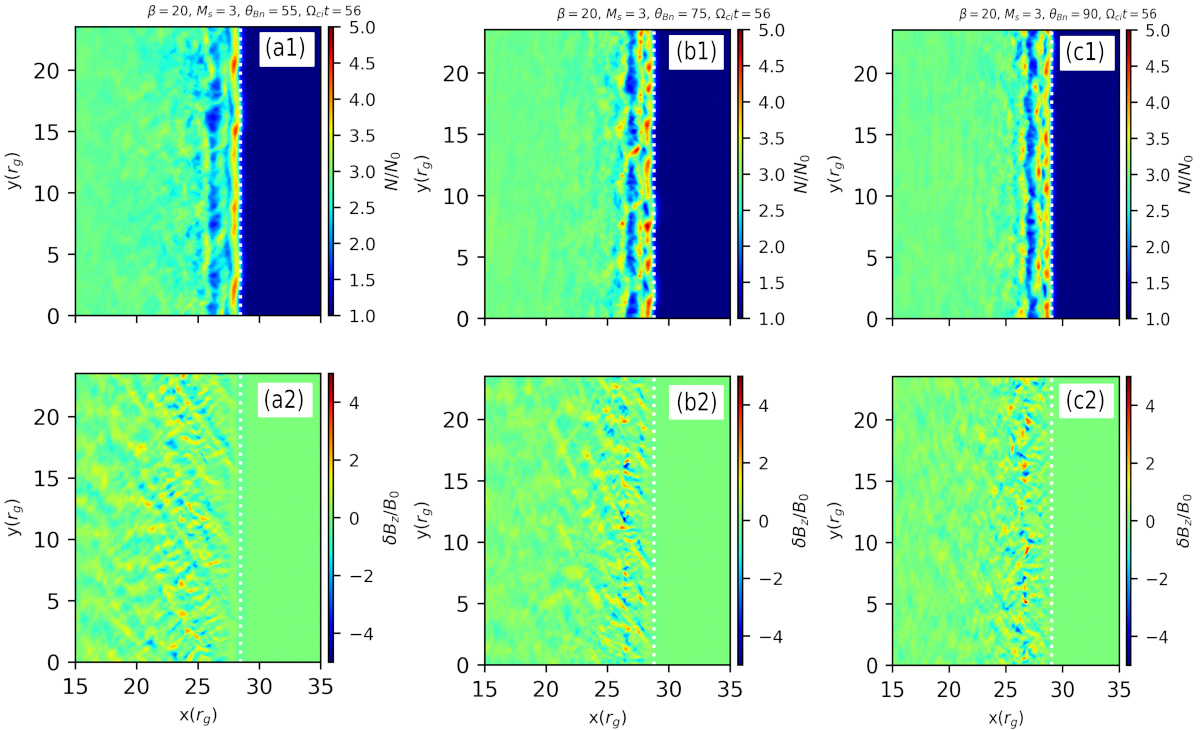

Structure of shocks with β = 20 and Ms = 3 at time Ωcit = 56 for different values of the obliquity angle, θBn = 55°, 75°, and 90°, and runs D1, A4, and D2 in panels a–c, respectively (compare Fig. 10).
