Fig. 12.

Download original image

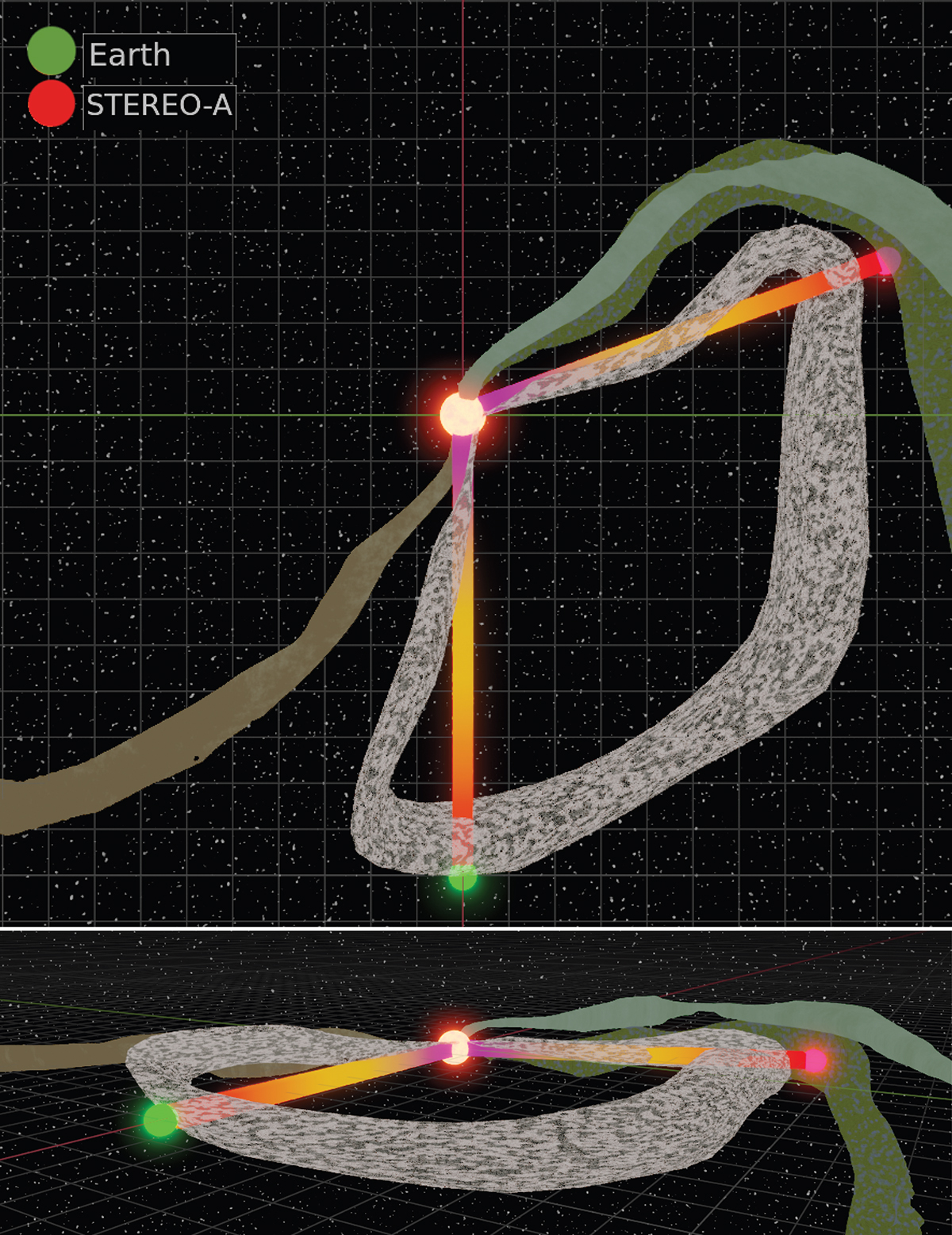

Proposed scenario based on the observations. Spacecraft and structures are located at the moment of the encounter with Wind. At that moment, STEREO-A was found in the high-speed stream. The green and brown traces represent the high-speed streams generated by CH2/CH3 and CH1, respectively. Colour bars represent the radial cross through the conditions of the SW following the same format as Figs. 8 and 9.
