Fig. 9

Download original image

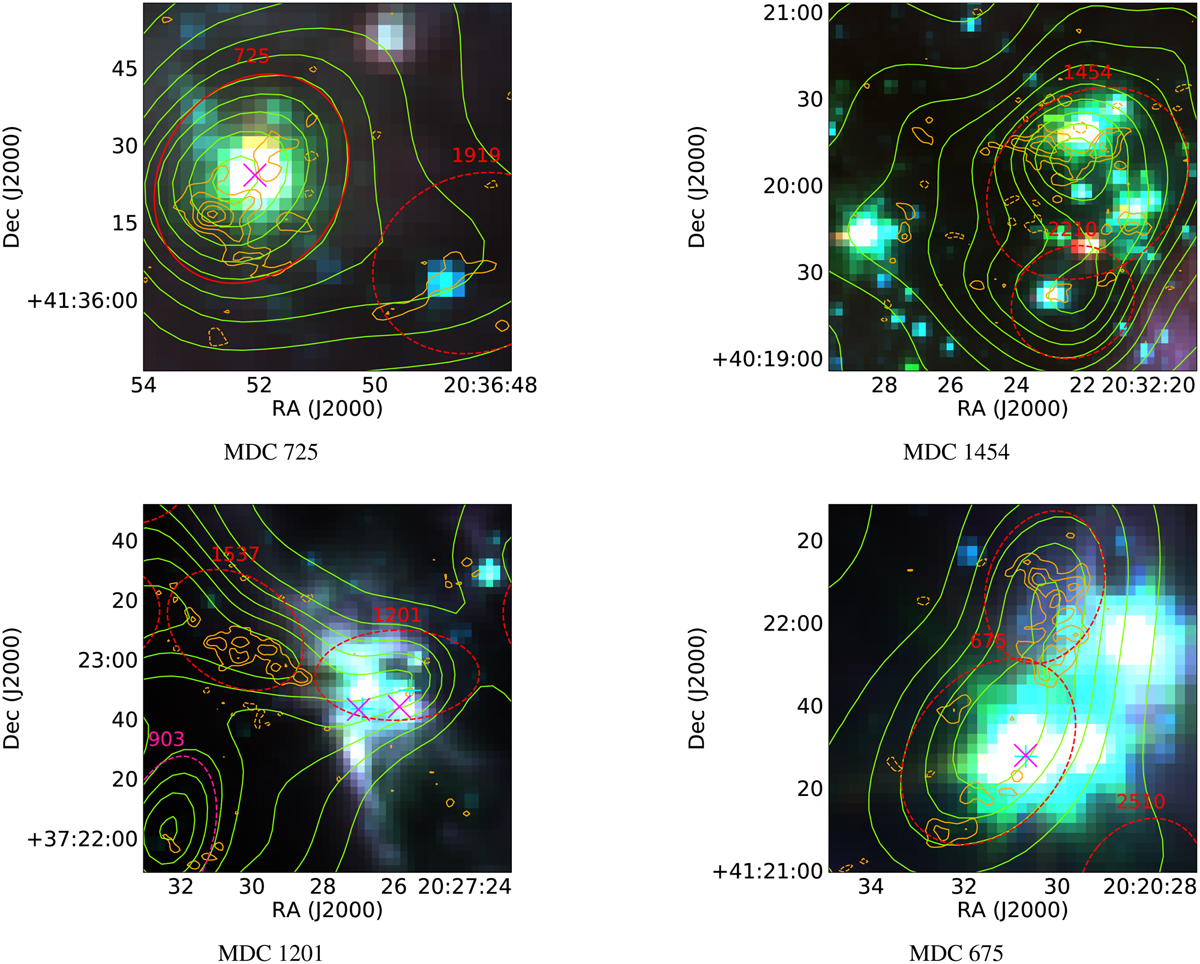

MDCs at the M2 stage (MDC 725 and 1454) and M3 stage (MDC 1201 and 675). Marks are the same as those in Fig. 8. For MDC 1201, there is nearly no NH3 (1,1) emission in it. As for MDC 675, NH3 (1,1) emission is only detected in a few isolated beams around the density peak. We therefore consider both of them to be MDCs at the M3 stage.
