Fig. 11.
Download original image

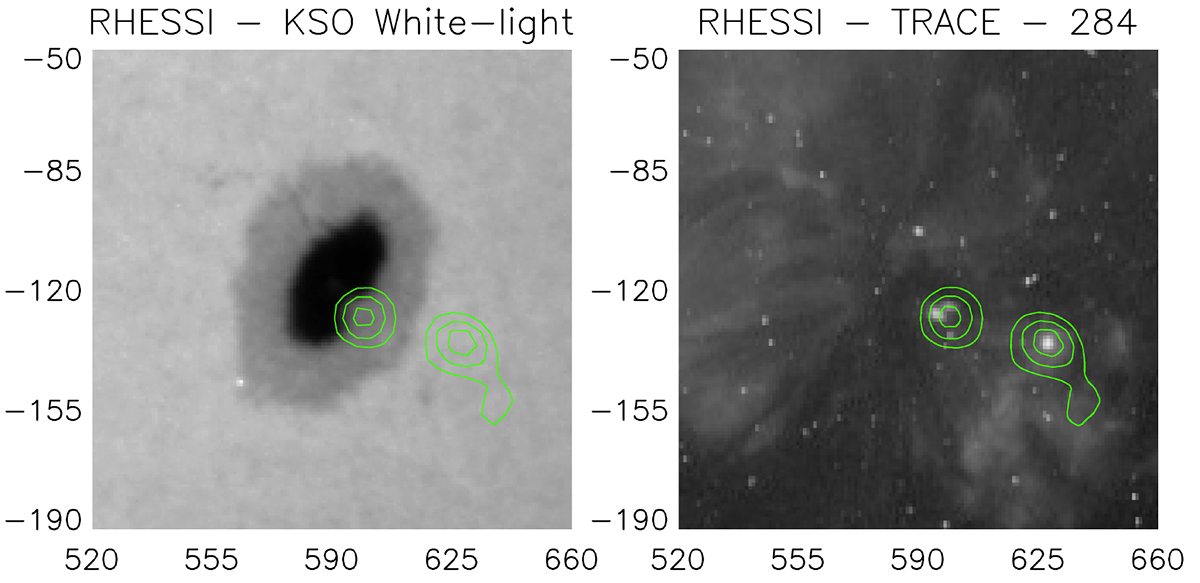

White–light, EUV and X-ray imaging. Kanzelhöhe white-light image from November 17, 2006 and RHESSI 12−60 keV image contours from 05:13:40 to 05:13:52 in green, with 60, 75, and 90% of the maximum intensity (left). TRACE 284 Å EUV filtergram from 05:14:01 UT and same RHESSI contours in green (right). Units are given in arcsec.
