Fig. 7.
Download original image

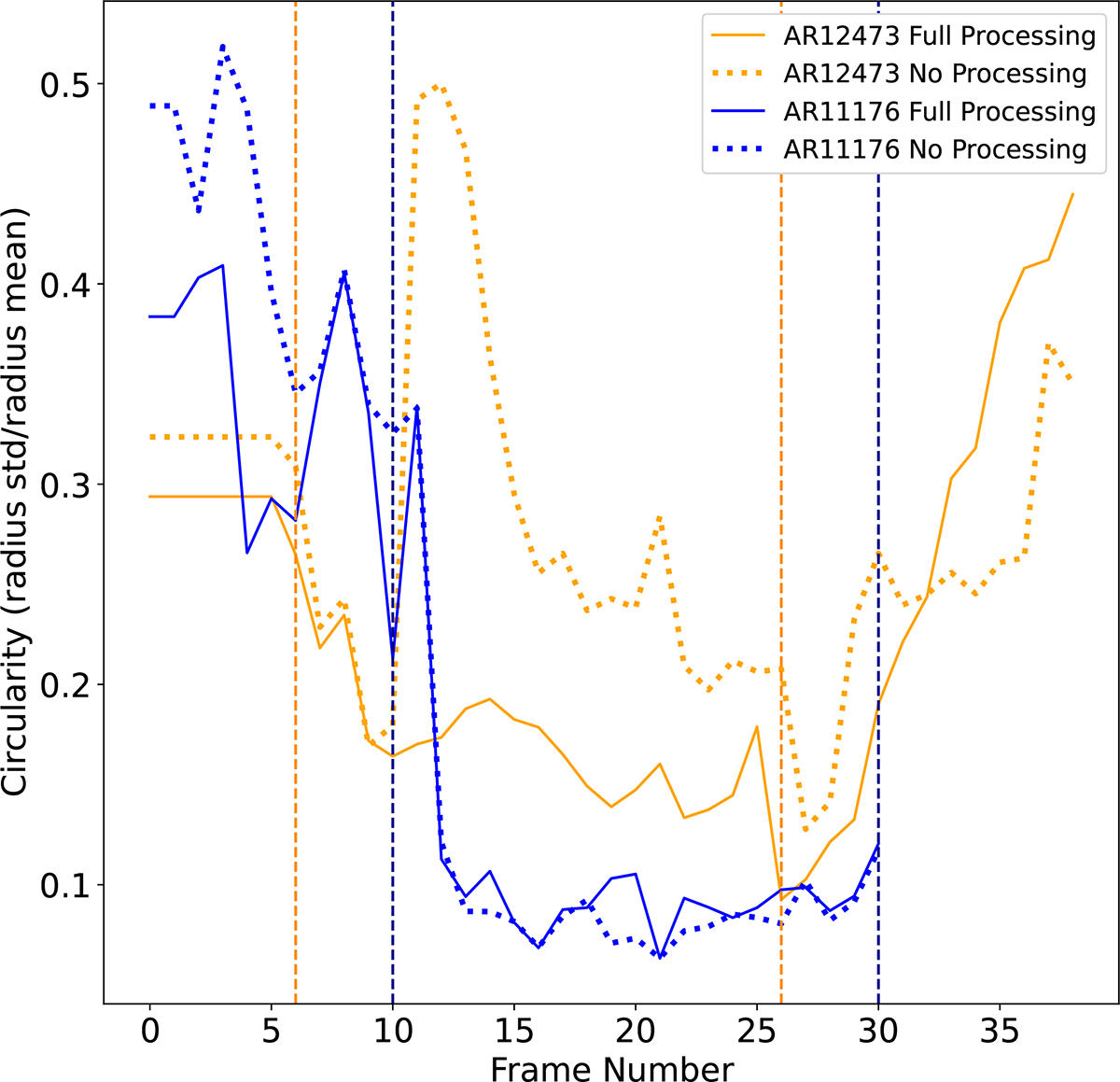

Circularity of the extracted cross-sectional shapes, obtained for the TMFM FRs for AR11176 (in blue) and AR12473 (in orange). The dashed vertical lines indicate the relevant (i.e. physical) time windows, which are used in Fig. 8. The dotted lines show the circularity of an additional FR extraction for each simulation, where no morphological openings were applied.
