Fig. 3.
Download original image

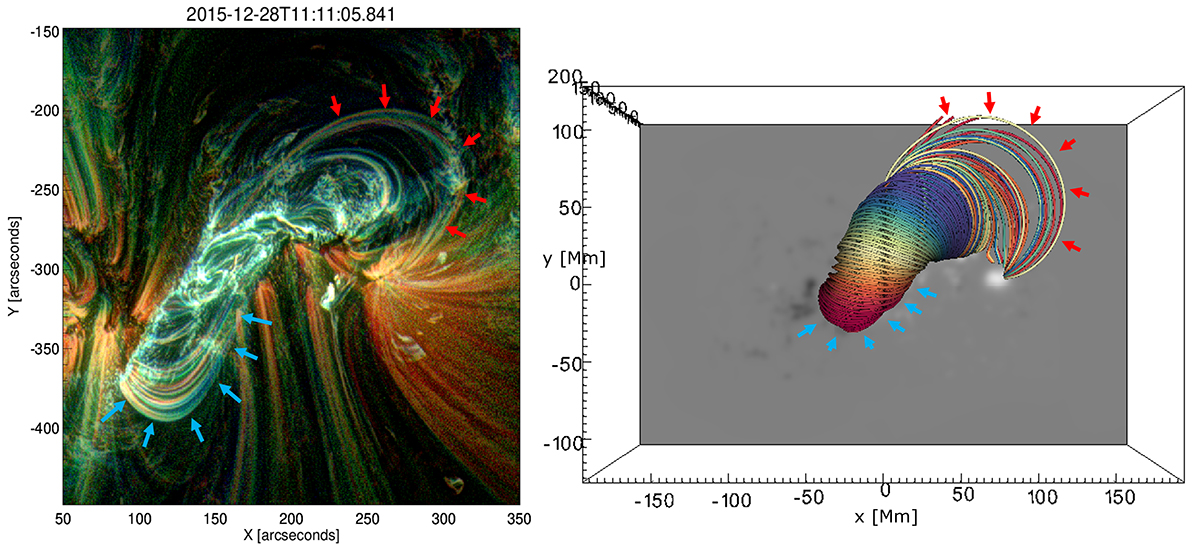

Comparison of FR appearance as observed in the EUV (left panel) and the simulation (right panel) for AR12473. The EUV image is the composite image constructed from the AIA 171 Å (red), 211 Å (green), and 193 Å (blue) passbands. The blue and red arrows indicate similar structures between the AIA images and the simulation results.
