Fig. 16.
Download original image

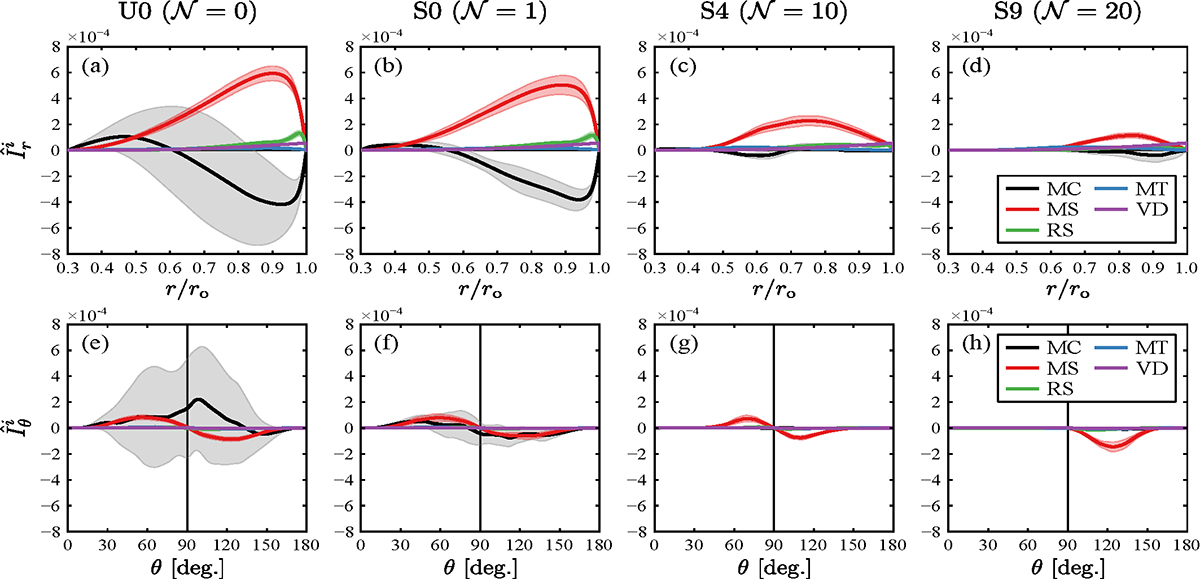

Same as Fig. 15 but for the three stratified runs S0, S4, and S9 at Pr = 10−3 and 𝒩 = 1, 10, and 20 respectively (second to fourth from left panels). The leftmost panels show the unstratified fiducial dynamo run U0 for the sake of comparison. All runs are at Re = 5 × 104 and Pm = 1.
