Fig. A.4

Download original image

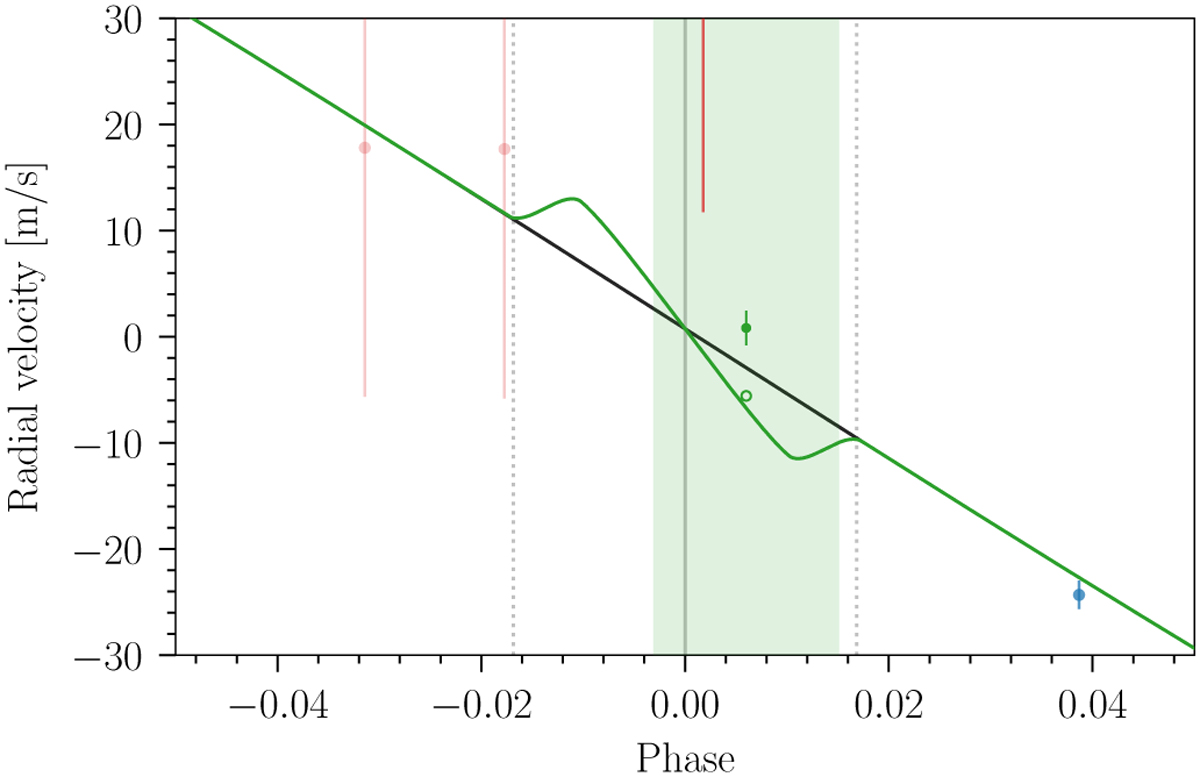

Same as the upper panel of Fig. 8 but including the ESPRESSO observation during transit (green error bar), with its phase coverage highlighted in green. The transit centre is marked with a vertical solid grey line, and the ingress and egress are marked with dotted vertical grey lines. The green line is a model for the RVs that includes the Rossiter–McLaughlin effect for an aligned system (computed with the starry code; Luger et al. 2019), and the green open circle is the integration of this model for the ESPRESSO observation during transit.
