Fig. 13

Download original image

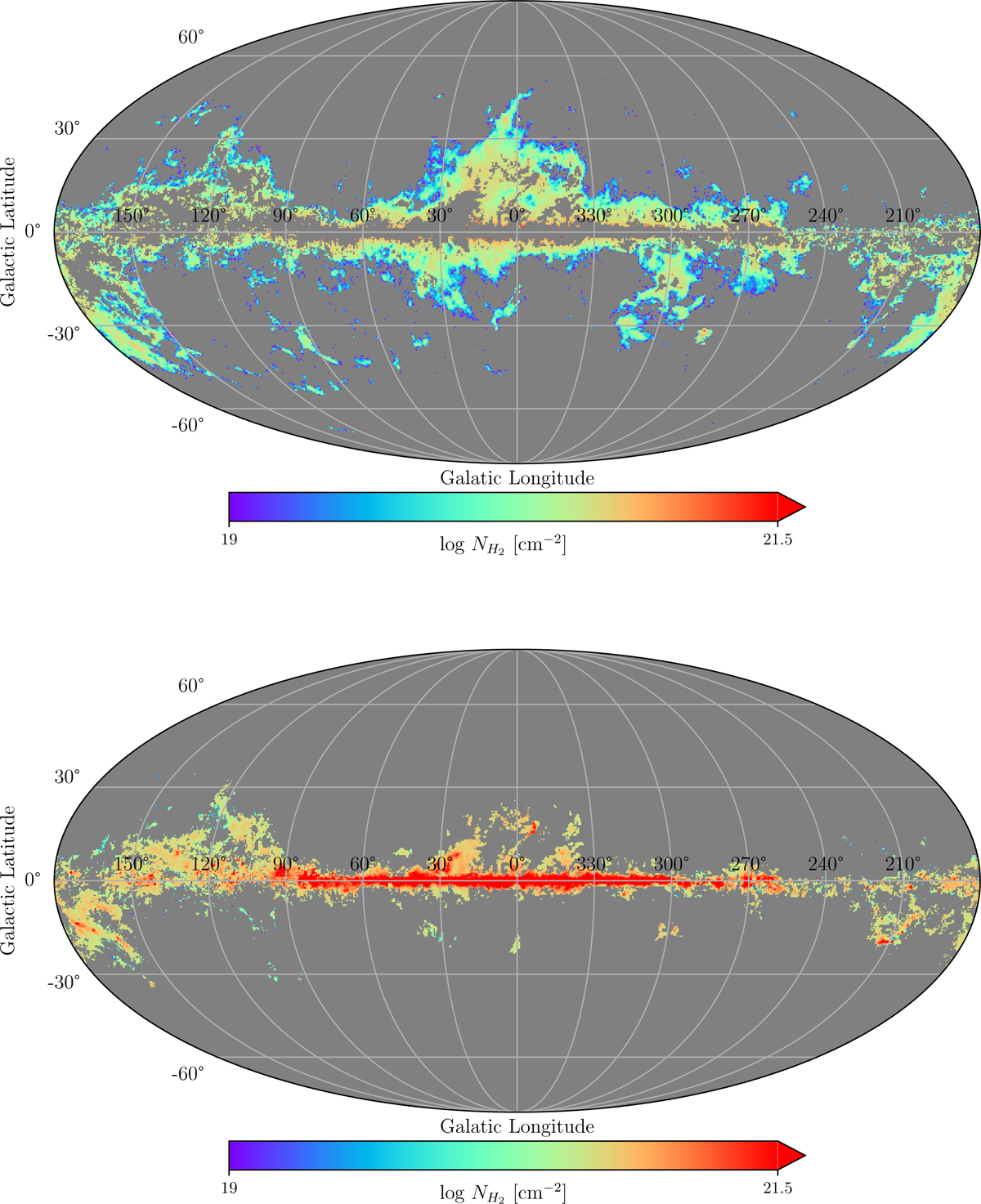

Comparison of the CO-dark and CO-bright maps. Upper panel: full-sky CO-dark
map, showing sightlines with
cm-2 but devoid of CO (WCO < 1 Kkm s-1). Bottom panel: CO-bright
map, corresponding to
cm-2 and WCO > 1 K km s-1. The CO-dark H2 spans an area approximately equal to 17% of the total sky. This is a factor of 2 larger than that of the CO-bright H2, and extends up to high Galactic Latitude. On the other hand, CO-bright H2 is mostly concentrated toward the Galactic plane. Moving away from the Galactic plane, we observe that H2 transitions from CO-bright to CO-dark form at |b| ≈ 5 deg. Although we still observe a few CO-bright H2 regions at higher latitudes above the Galactic plane, most of the molecular gas is in the CO-dark form there.
