Fig. 1

Download original image

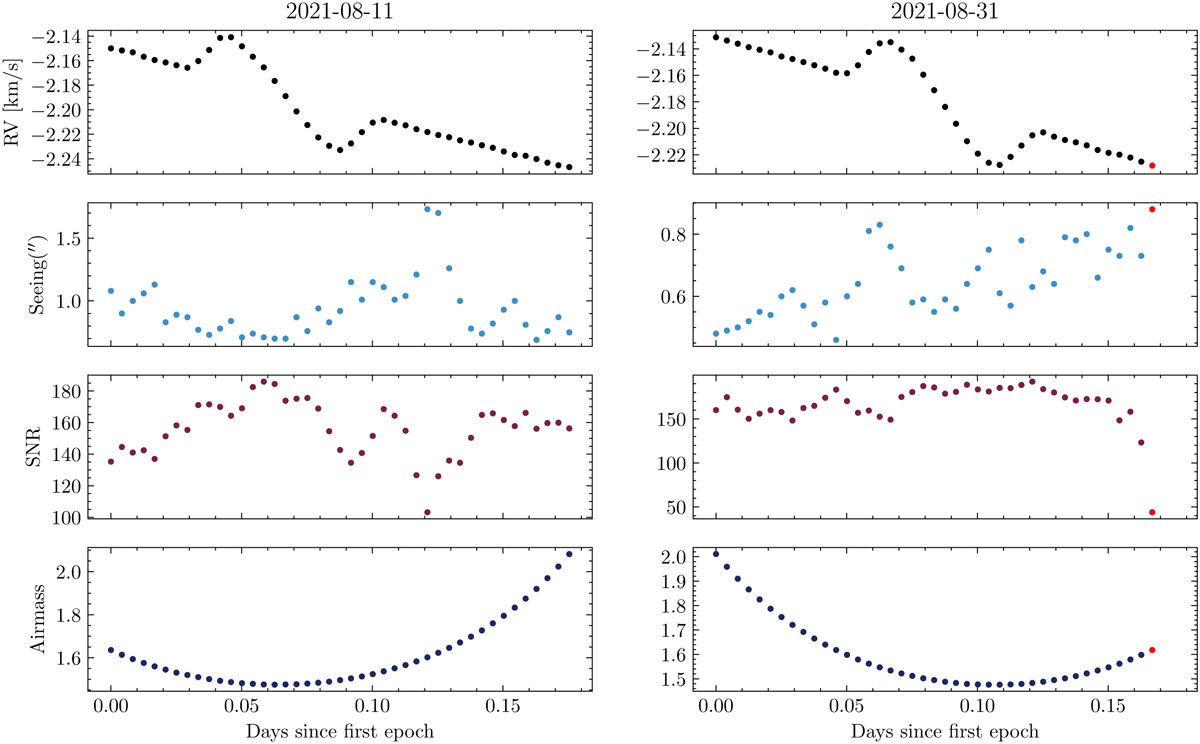

Radial velocities of HD 189733b retrieved from the CCF header for the white light. The error bars are not visible since they are smaller than the dimension of the markers. In the same column, showing evolution during the night, are the SNR at around 580 nm and airmass as a function of the number of days since the first epoch. The red dot represents the observation that was removed from the second night set due to a low SNR.
