Fig. 2.


Download original image

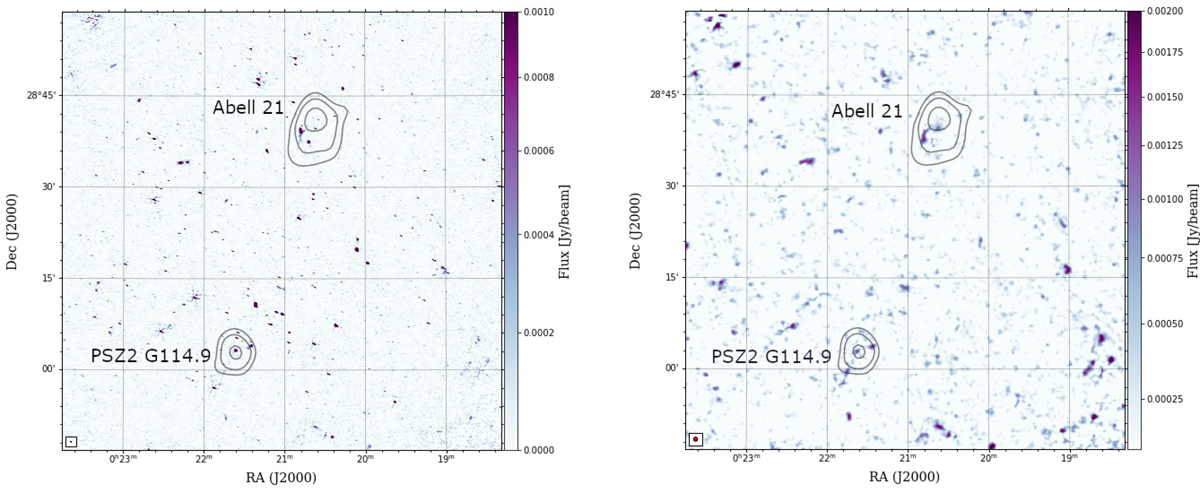

Mosaic radio images at 383 MHz of the A21-G114.9 clusters pair, with overlaid X-ray ROSAT contours. Left panel: high-resolution (15″ × 5″) mosaic image with σrms = 40 μJy beam−1 produced with Briggs robust = 0, showing the compact sources in the field. Right panel: low-resolution (40″ × 40″), compact source-subtracted image with σrms = 230 μJy beam−1. It is generated by Briggs robust=0 and a Gaussian uv-taper. No diffuse emission is revealed.
