Fig. 17.


Download original image

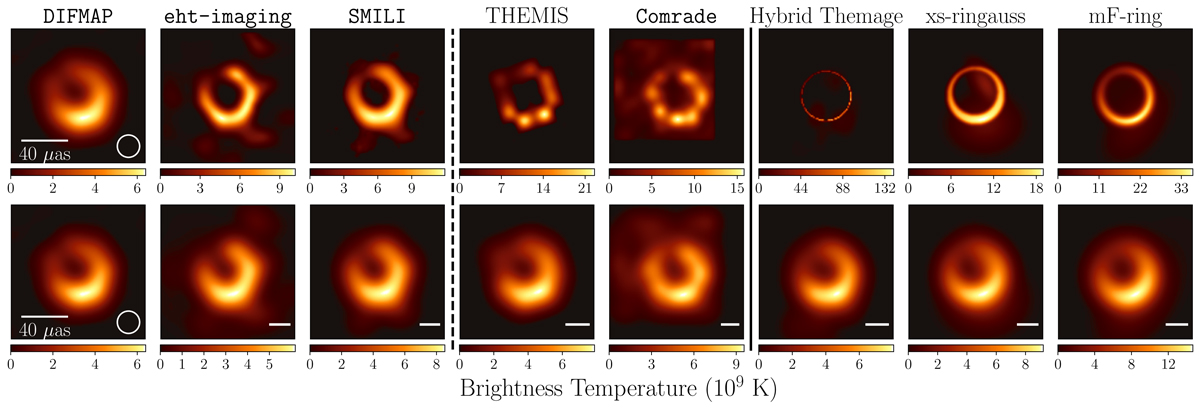

Representative band 3 images of M 87* on April 21 from each imaging pipeline (top row). Fiducial images are shown for DIFMAP and the RML methods. The DIFMAP image is restored with a circular 20 μas beam, as shown by the circle in the lower right corner. For THEMIS, Comrade, Hybrid Themage, the xs-ringauss, and the mF-ring a random sample drawn from the posterior is shown. Representative band 3 images of M 87* on April 21 from each imaging pipeline after blurring them with a circular Gaussian beam are shown on the bottom row – the FWHM of each beam is shown with the horizontal bar in the bottom right of each image. The eht-imaging, SMILI, THEMIS, Comrade, and Hybrid Themage images have been restored with 16.9, 16.1, 19.5, 18.8, and 14.2 μas FWHM Gaussian beams, respectively, to match the resolution of the DIFMAP reconstruction, whereas the xs-ringauss and mF-ring images were restored with a 20 μas FWHM Gaussian beam. The vertical dashed line separates the DIFMAP and RML methods from the Bayesian methods, and the solid vertical line separates the imaging methods which do not assume a ring-like structure, from the direct modeling methods which do assume a ring-like structure.
