Fig. 2
Download original image

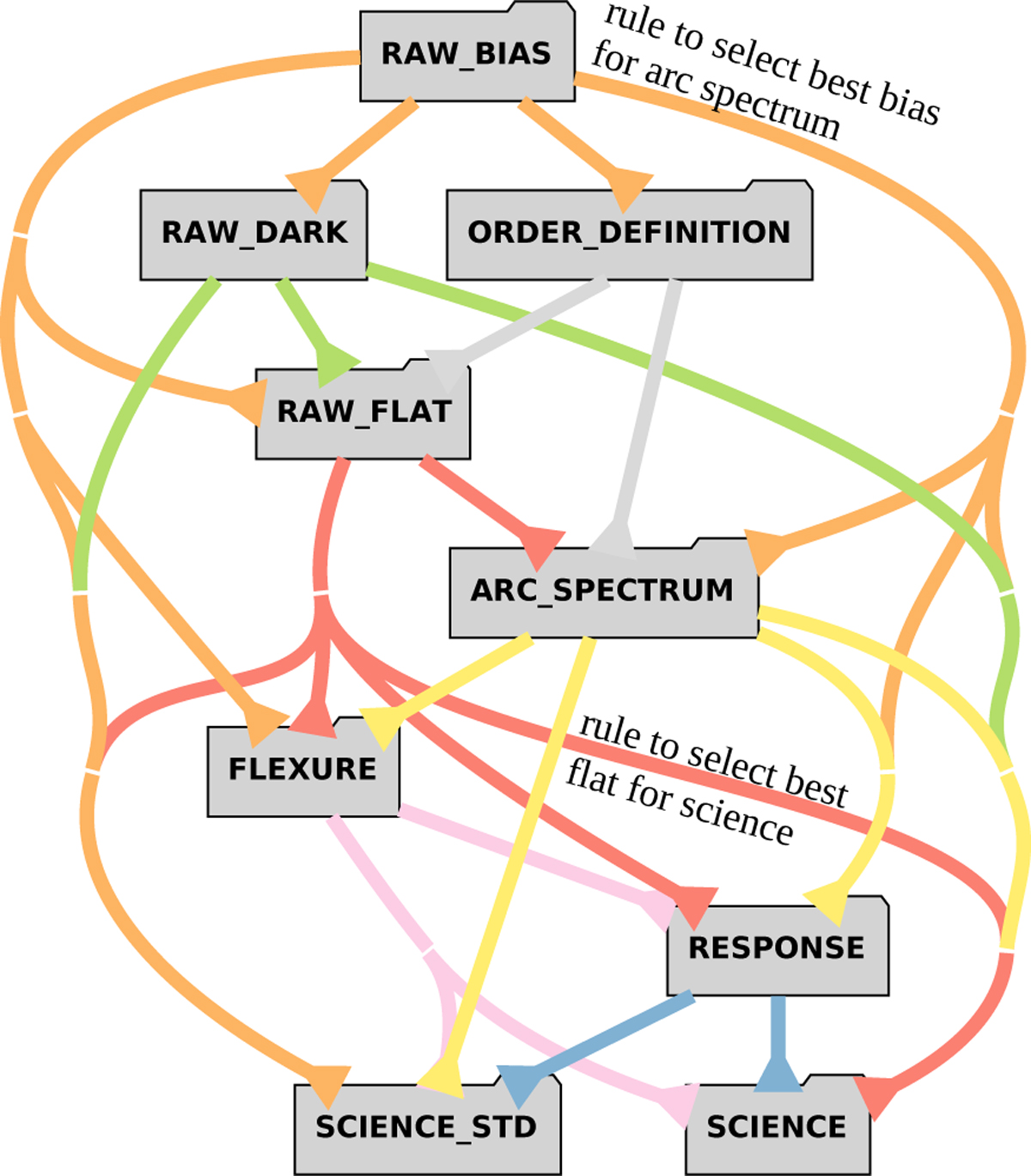

Association rules for the workflows shown in Fig. 1. Each folder symbol represents a set of raw data. Each line represents a rule for selecting the raw files at the end of the line. The arrow at the start of the line indicates where the information to select the files is taken from. The labels on two of the lines spell out the nature of those rules.
