Fig. D.1

Download original image

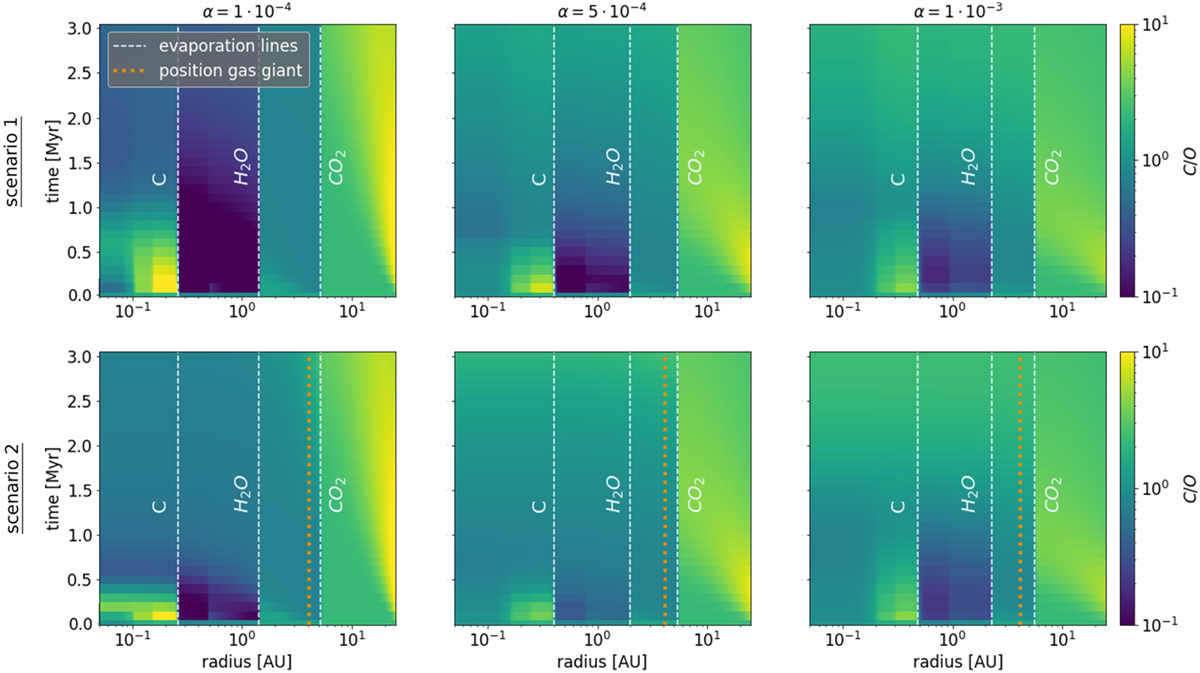

Disk C/O ratio in the gas phase normalized to stellar values for different α-viscosities for scenario 1 (top) and scenario 2 (bottom), as functions of disk radius and time. Different evaporation lines are marked in white. The orange vertical line indicates the position of the gas giant for scenario 2.
