Fig. 6
Download original image

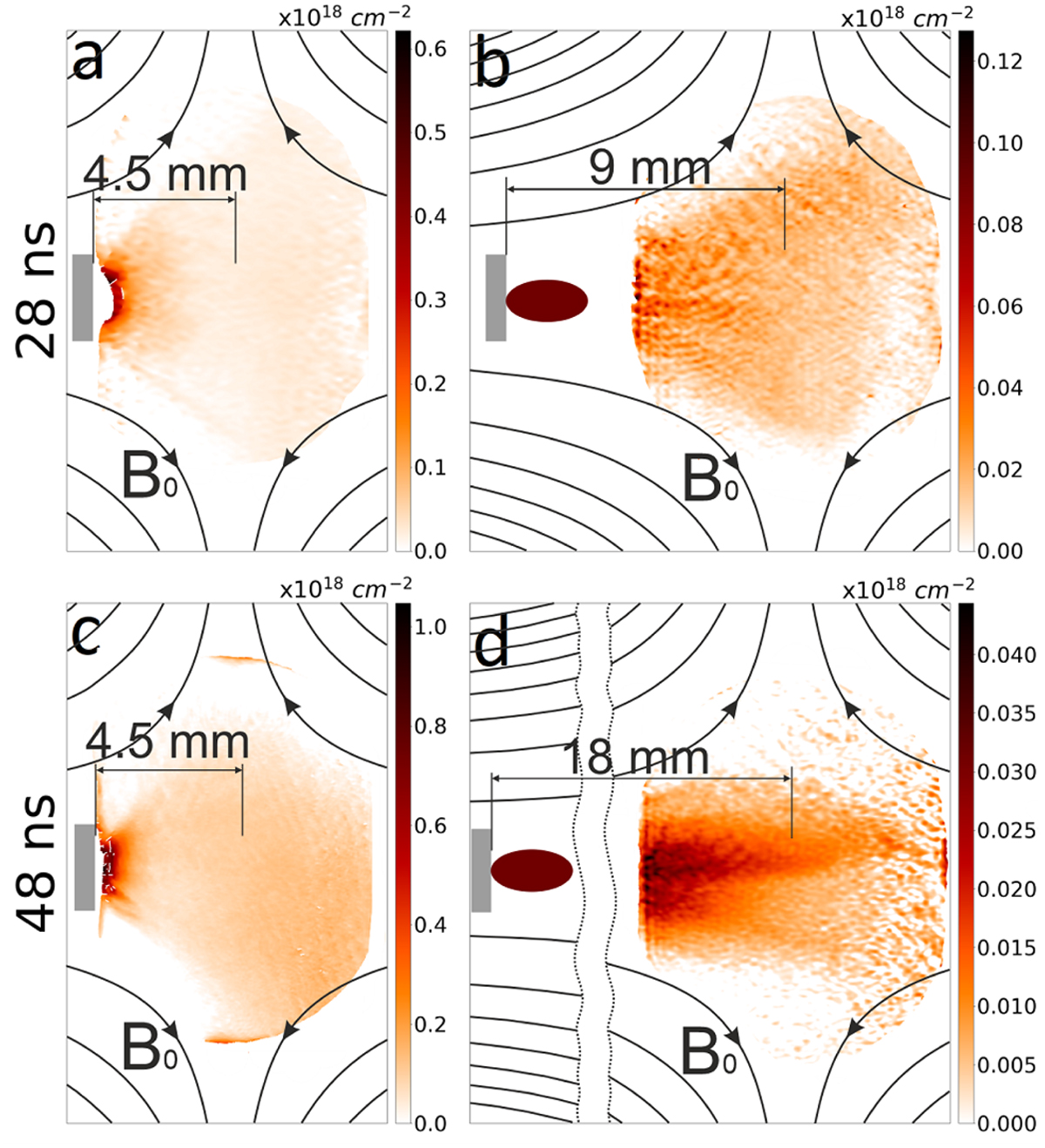

Two-dimensional density profiles of the plasma stream propagating through a poloidal diverging magnetic field at 28 ns (a, b) and 48 ns (c, d) after laser irradiation of the target. The gray rectangle shows the location of the target. To depict the position of the target and reduce the scale of the picture, panel d is drawn with a gap, represented by the dashed line.
