Fig. B.1.

Download original image

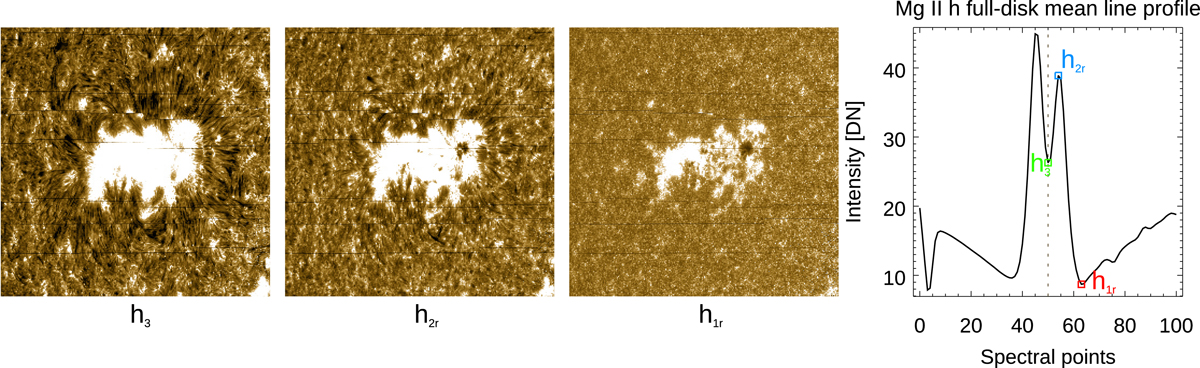

Closeup view of AR NOAA 12706 and its surroundings in the Mg II h non center-to-limb corrected mosaic at different spectral pixels, i.e., from left to right, at the 50th, 54th, and 63th spectral points, corresponding respectively to the h3, h2r, and h1r in the full-disk mean line profile (right panel). North is up and west is to the right. The FoV has dimensions 500″ × 410″. It is possible to notice a downward trend in the visibility of fibrils when moving away from h3.
