Fig. 1.


Download original image

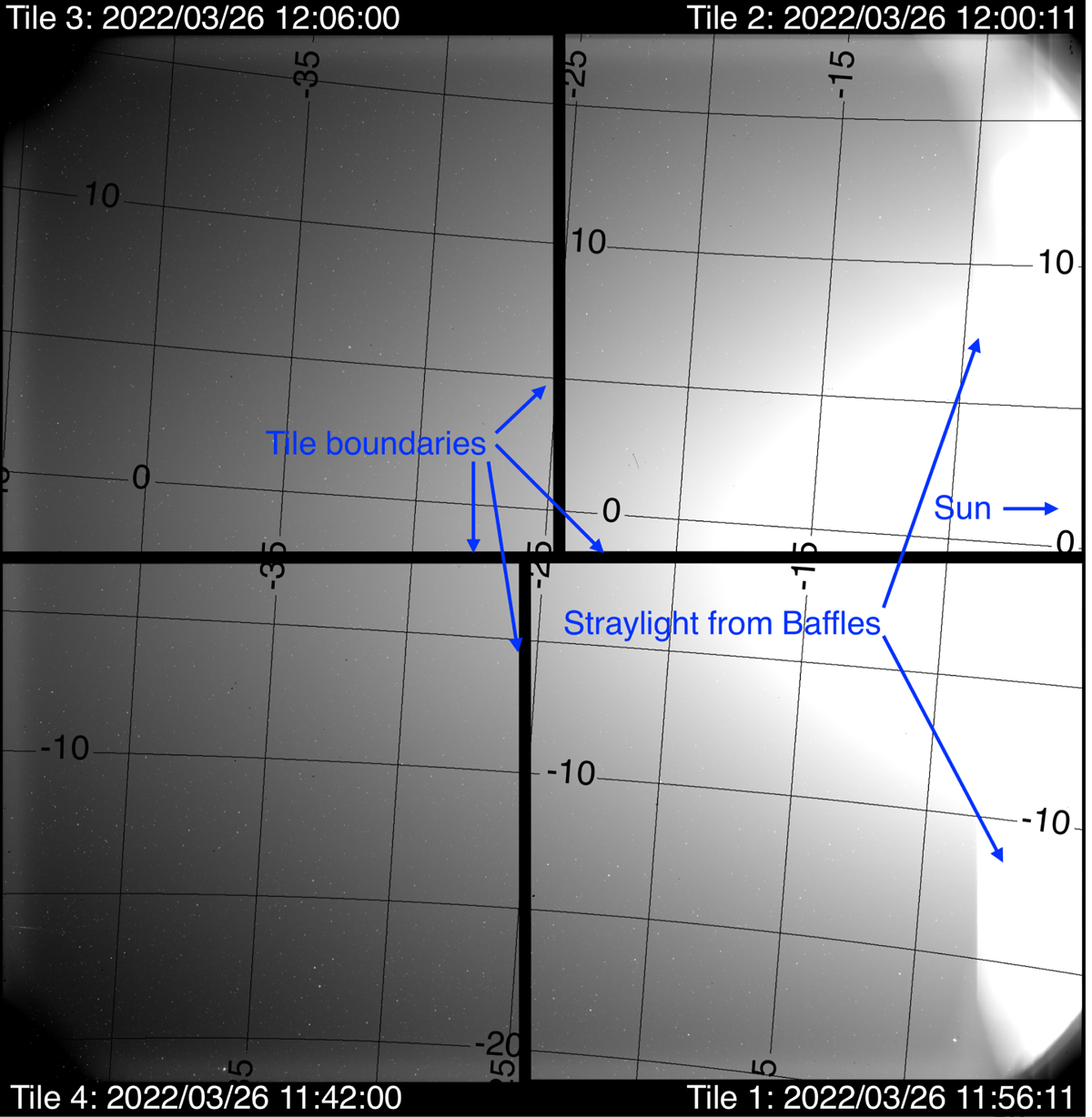

Mosaic of the four SoloHI tiles taken around the Solar Orbiter science perihelion. The tiles are individually labeled with the start time of each observation. The inner FoV is dominated by the linear straylight pattern from the instrument baffles and oblong-shaped F-corona. The cross-like pattern in the image is caused by the physical gaps on the detector between tile boundaries. A grid of the HPC coordinates is overlaid on the image. The sign of the elongation (x-coordinate) is negative because the FoV is in the anti-ram direction of the spacecraft.
