Influence of the interstellar magnetic field and 11-year cycle of solar activity on the heliopause nose location

Open Access

Fig. 10.

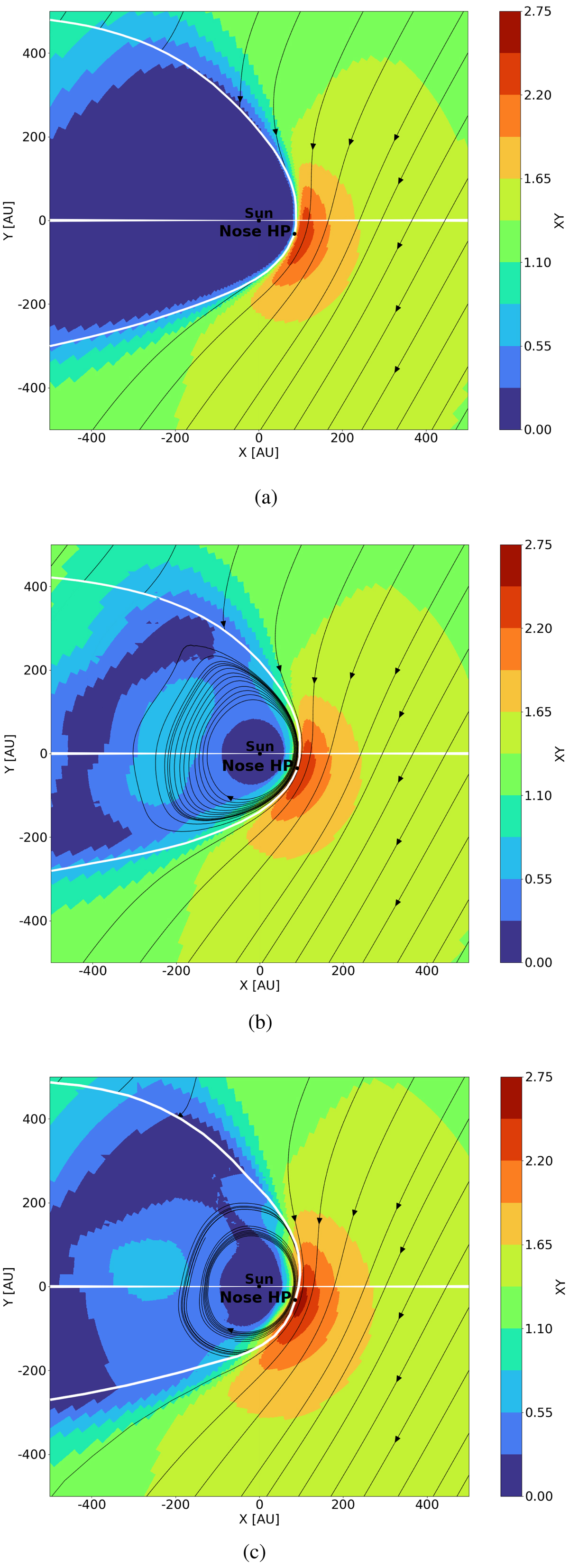

Magnetic fieldlines (black) shown for the magnetic field magnitude for the inclination angle α = 60° and for ISMF intensity 4 μG (a) Iso SW without the IMF (compare to Figs. 8a and 9b) (b) Iso SW with the IMF (compare to Figs. 8c and 9c) (c) Anis SW with the IMF (compare to Figs. 8d and 9e).
