Fig. 5


Download original image

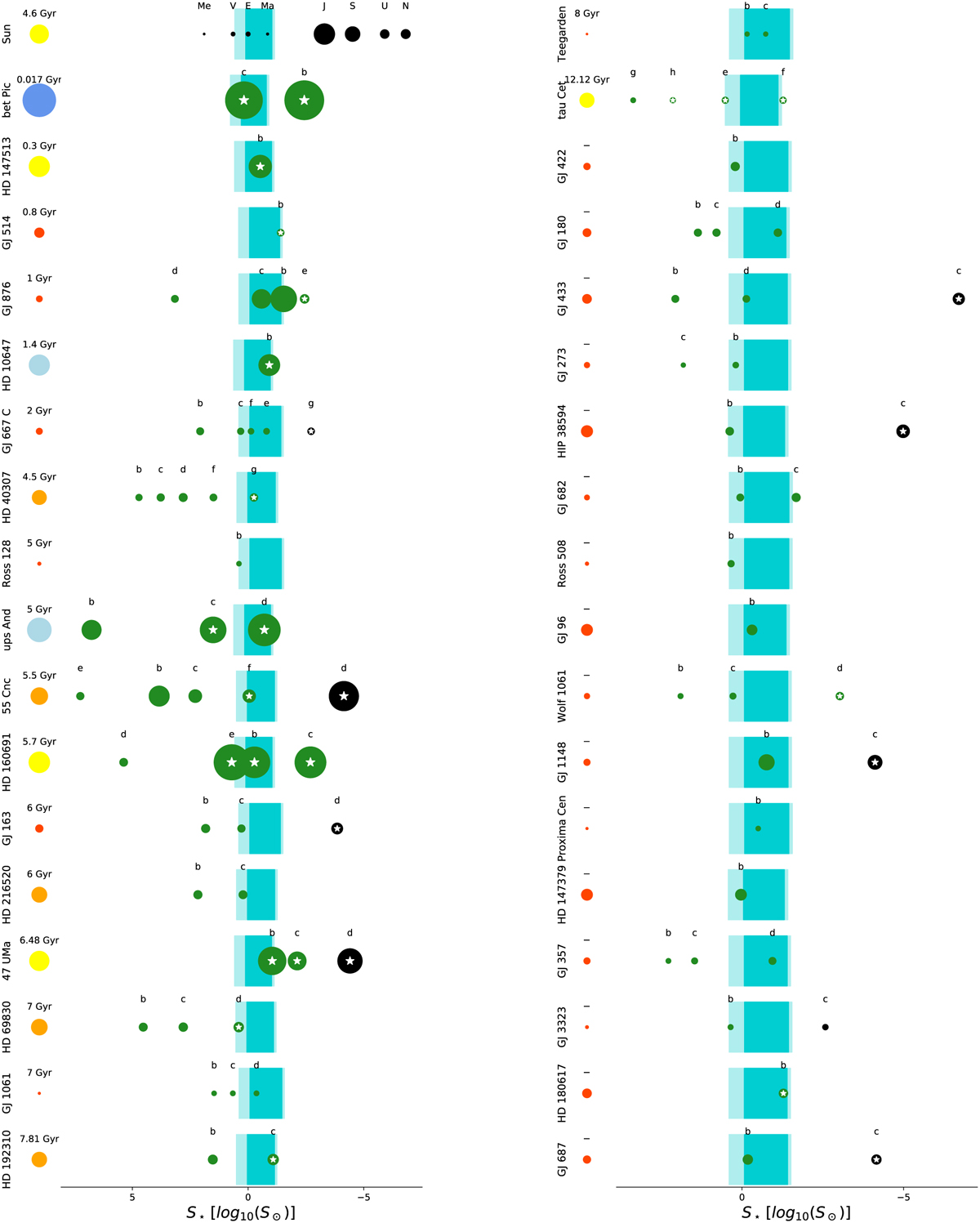

Planetary systems with HZ planets detectable with LIFE’s reference configuration. Planets detectable with LIFE are shown by green circles and those which are not, by black circles. Inscribed white-star markers indicate planets that are accessible with HWO in reflected starlight (Paccess > 25%). Blue-shaded regions show the conservative HZ of each star, with lighter-blue regions being the optimistic HZ zone (Kopparapu et al. 2014). The sizes of the markers both for stars and planets are proportional to their masses. Stars are color-coded depending on their spectral type (red, orange, yellow, blue-grey and light blue for M, K, G, F and A stars resp.). The Solar System is depicted in the first subplot for reference.
