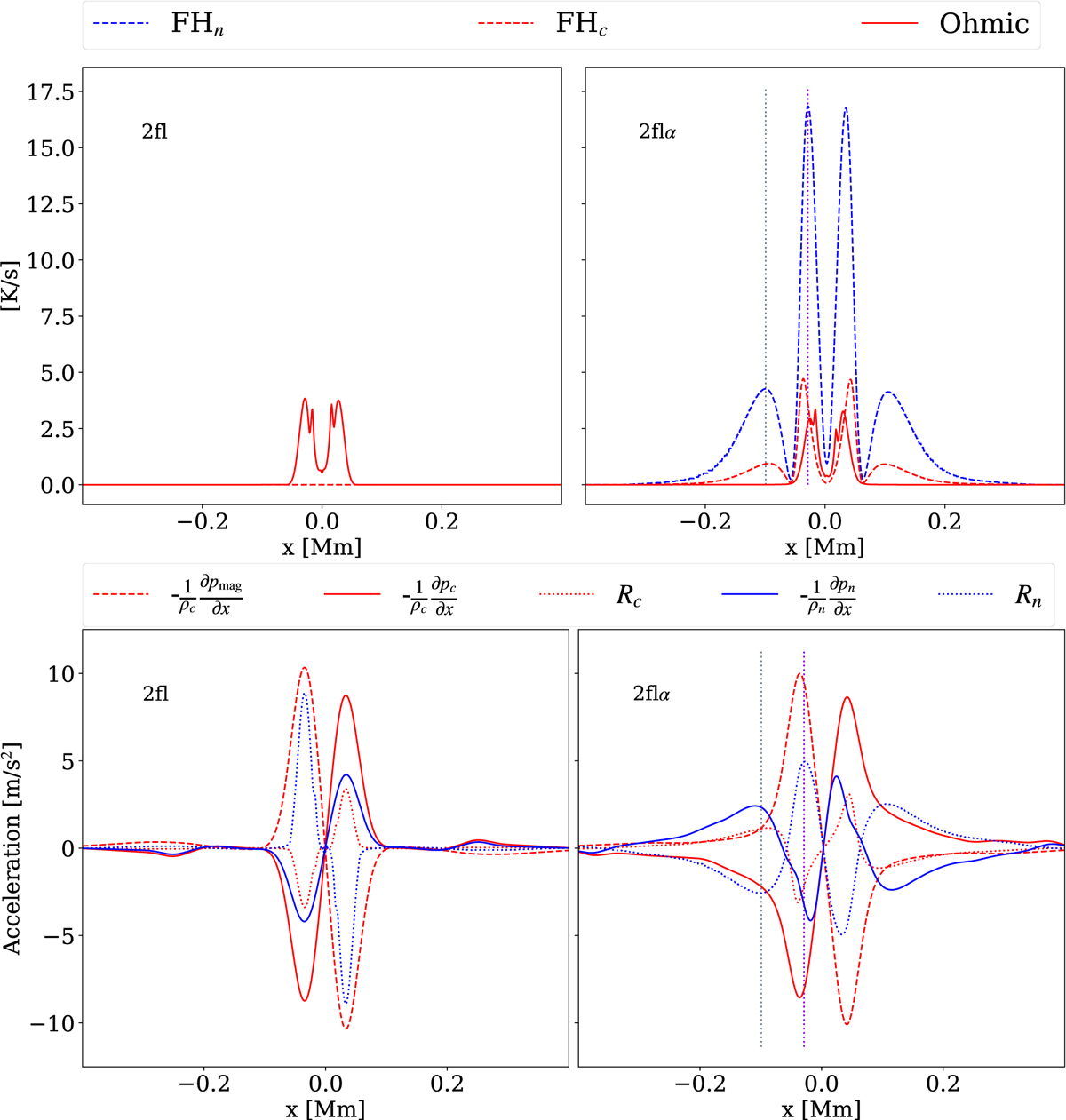

Fig. 8.

Download original image
Horizontal cuts along z = 4 Mm for the case with TR reconnection, or zrec = 2 Mm at time t = 622.6 s, the same time as for Fig. 7. Quantities corresponding to charged and neutral fluid are shown with red lines and blue lines, respectively. Left panels: 2fl case. Right panels: 2flα case. Top row: Terms in the temperature equation; the Ohmic term (solid red line) and collisional heating terms (dashed lines: red for charges and blue for neutrals). Bottom row: Terms in the velocity equation; acceleration is due to magnetic pressure (dashed red line), the gas-pressure gradient (solid lines; red for charges and blue for neutrals), and collisions (dotted lines; red for charges and blue for neutrals). The primary and secondary maximum peaks in the collisional heating associated with neutrals, located (and shown only for negative x, because of symmetry) at z = −0.03 Mm and z = −0.1 Mm, are indicated by vertical dotted violet and gray lines, respectively, for the 2flα case (right panels).
