Fig. 7.


Download original image

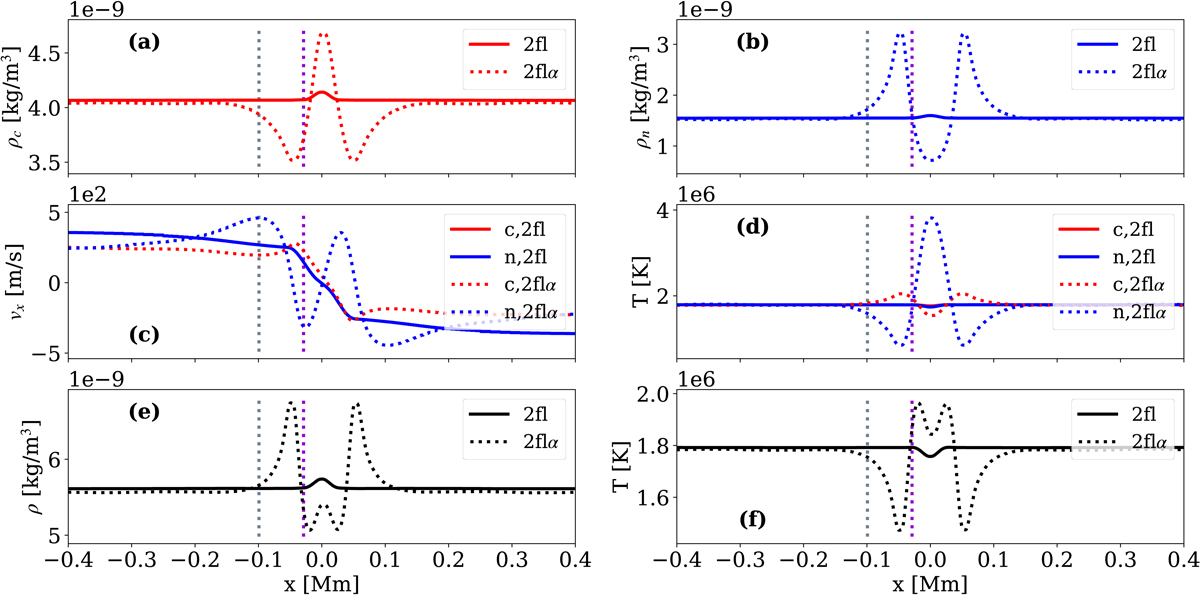

Horizontal cut at coronal height z = 4 Mm at time t = 622.6 s for the simulations with TR reconnection or zrec = 2 Mm. (a) Density of charges. (b) Density of neutrals. (c) x velocity for charges and neutrals. (d) Temperature of charges and neutrals. (e) Total density. (f) Center of mass temperature from Eq. (10). Different curves are for the two models considered – 2fl and 2flα – quantities for charges and neutrals are shown in the same plot in panels c and d, as indicated in the legend. The primary and secondary maximum peaks in the neutral collisional heating term for case 2flα, as shown in detail in Fig. 8 and located at z = −0.03 Mm and z = −0.1 Mm, are indicated by vertical violet and dotted gray lines, respectively.
