Fig. 12
Download original image

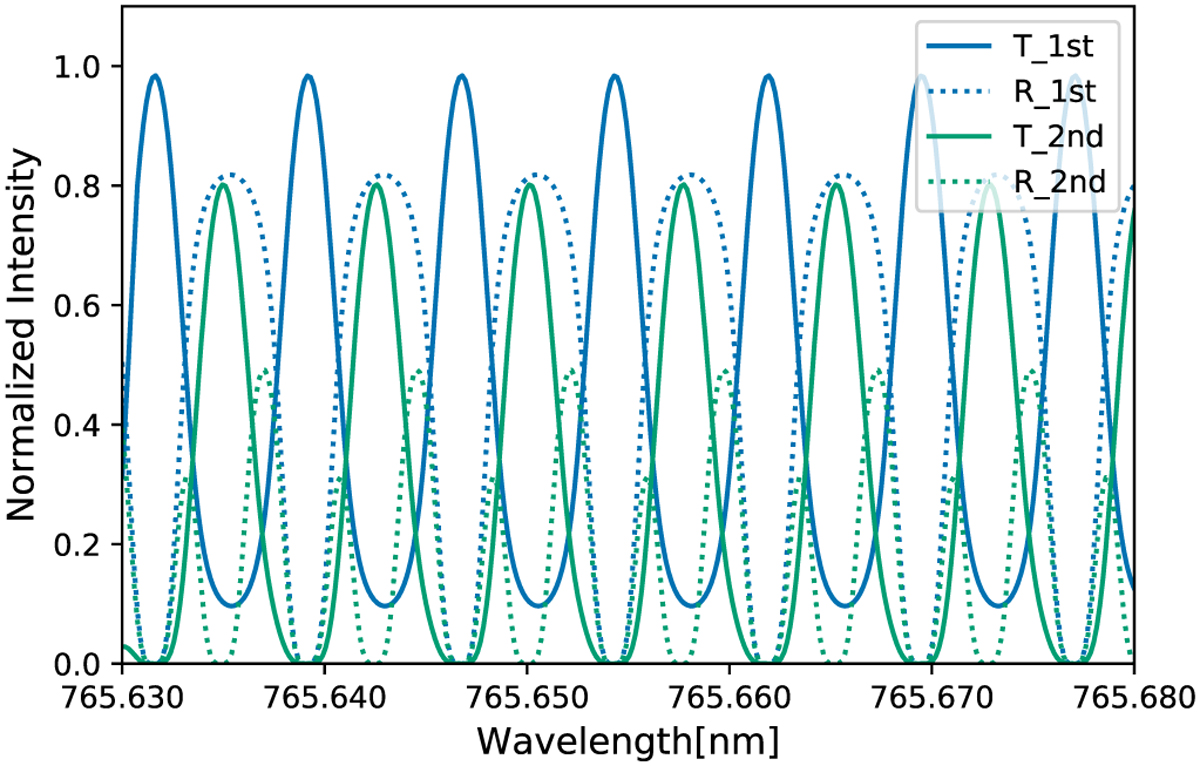

Model showing the signal level where an additional arm could be added into the FPI array with the same specifications as those used in the prototype. The blue and green solid lines indicate the transmission (IT) signal from the existing first and second arm. The dotted lines are the reflection (IR) signal.
